Leuze

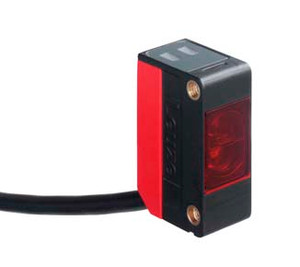

Leuze PRK5/2N-200-M12 Polarized retro-reflective photoelectric sensor

SKU:

PRK5/2N-200-M12

UPC:

MPN:

50117702

Condition:

New

Series:

5

Operating principle:

Reflection principle

Operating range:

0.02 ... 4.5 m, With reflector TK(S) 100x100

Operating range:

Guaranteed operating range

Operating range limit:

0.02 ... 6 m, With reflector TK(S) 100x100

Operating range limit:

Typical operating range

Light source:

LED, Red

Wavelength:

620 nm

LED group:

Exempt group (in acc. with EN 62471)

Protective circuit:

Polarity reversal protection,Short circuit protected

Supply voltage UB:

10 ... 30 V, DC, Incl. residual ripple

Residual ripple:

0 ... 15 %, From UB

Open-circuit current:

0 ... 20 mA

Number of digital switching outputs:

2 Piece(s)

Switching principle:

Light switching

Switching principle:

Dark switching

Switching frequency:

500 Hz

Response time:

1 ms

Readiness delay:

300 ms

Function:

Signal OUT,Voltage supply

Type of connection:

Cable with connector

Cable length:

200 mm

Sheathing material:

PUR

Cable color:

Black

Wire cross section:

0.2 mm²

Thread size:

M12

Type:

Male

Material:

Plastic

No. of pins:

4 -pin

Encoding:

A-coded

Dimension (W x H x L):

14 mm x 32.5 mm x 20.2 mm

Housing material:

Plastic

Plastic housing:

ABS

Lens cover material:

Plastic

Net weight:

40 g

Housing color:

Black,Red

Type of display:

LED

Ambient temperature, operation:

-40 ... 60 °C

Ambient temperature, storage:

-40 ... 70 °C

Degree of protection:

IP 67

Protection class:

III

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

85365019

ECLASS 5.1.4:

27270902

ECLASS 8.0:

27270902

ECLASS 9.0:

27270902

ECLASS 10.0:

27270902

ECLASS 11.0:

27270902

ECLASS 12.0:

27270902

ECLASS 13.0:

27270902

ECLASS 14.0:

27270902

ECLASS 15.0:

27270902

ETIM 5.0:

EC002717

ETIM 6.0:

EC002717

ETIM 7.0:

EC002717

ETIM 8.0:

EC002717

ETIM 9.0:

EC002717

ETIM 10.0:

EC002717

Datasheet:

View

Brochure:

View

Declaration of Conformity:

View
