Description

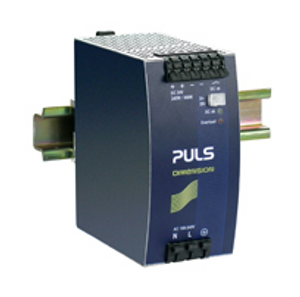

DIN-Rail Power Supplies for 1-phase Systems
24V, 10A
- 100-240V Wide-range input, active PFC
- Efficiency up to 93,5%, SEMI-F47-200 approved
- Negligibly low input inrush current
- 50% Power reserves available up to 4s
- Full output power between -25 and +60°C
- Spring-clamp terminals, DC-OK contact
Also known as AHC1969039. Spec Sheet
| Output | 24-28Vdc |
| 10-9A | |
| 240W | |
| Input | AC 100-240V (± 15%) |
| DC 110V-150V (-20%/+25%) | |
| Size (WxHxD) | 60 x 124 x 117mm |
| Weight | 900g |
The most outstanding features of this DIMENSION Q-series DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. The Q-series is part of the DIMENSION family, existing alongside the lower featured C-series. With short-term peak power capability of 150 % and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy, and often allow a unit of a lower wattage class to be used. High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible. The integrated output power manager, a wide-range input voltage design and virtually no input inrush current make installation and usage simple. Diagnostics are easy due to the dry DC-OK contact, a green DC-OK LED and red overload LED. Unique quick-connect spring clamp terminals allow a safe and fast installation, and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
