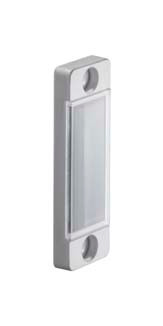

REF 6-S-20x40 Reflector
- Design:
- Rectangular
- Direction independent:
- No
- Triple reflector size:
- 0.3 mm
- Mounting dimension, width:
- 20 mm
- Mounting dimension, height:
- 60 mm
- Mounting dimension, thickness:
- 6 mm
- Reflective surface, height:
- 38 mm
- Reflective surface, width:
- 16 mm
- Reflector material:
- Plastic
- Material of base material:
- Plastic
- Polarization-changing:
- Yes
- Chemical designation, reflector material:
- PMMA8N
- Structure, active surface:
- Mikrotriple
- Net weight:
- 6 g
- Type of fastening:
- Screw type
- Ambient temperature, operation:
- -40 ... 70 °C
- Degree of protection:
- IP 67
- Customs tariff number:
- 90029000
- ECLASS 5.1.4:
- 27279203
- ECLASS 8.0:
- 27279203
- ECLASS 9.0:
- 27273601
- ECLASS 10.0:
- 27273601
- ECLASS 11.0:
- 27273601
- ECLASS 12.0:
- 27273601
- ECLASS 13.0:
- 27273601
- ECLASS 14.0:
- 27273601
- ECLASS 15.0:
- 27273601
- ETIM 5.0:
- EC002467
- ETIM 6.0:
- EC002467
- ETIM 7.0:
- EC002467
- ETIM 8.0:
- EC002467
- ETIM 9.0:
- EC002467
- ETIM 10.0:
- EC002467
