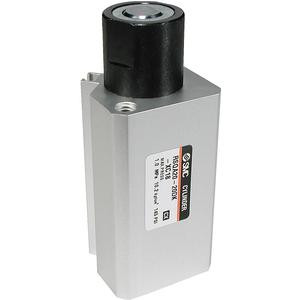

SMC RSQA32-20D compact stopper cylinder, rsq
SMC
$58.95
the rsq series is a fixed-height stopper cylinder with proven endurance and low breakaway characteristics. the rsg series is an adjustable mounting height stopper cylinder. it can be raised or lowered according to the distance required to stop the work piece. the rsh heavy-duty stopper cylinder is specially designed for use on conveyor lines or other applications requiring an external stopping device.
- fixed height stopper cylinder
- double acting and single acting available
- bore sizes: 12mm to 50mm
- stroke range: 10mm to 30mm
- auto switch capable
- Auto Switch:
- No Switch
- Rod End:
- Round Bar Style
- Action:
- Double Acting
- Stroke:
- 20mm
- Port Thread:
- Bore 12, 16: M Thread, Bore 20 to 50: Rc
- Bore Size:
- 32mm
- Mounting:
- Both Ends Tapped
