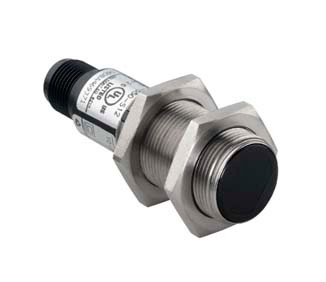

Leuze RTL 318M/P-300-S12 Industrial Sensor System
Leuze
$1,026.00
The RTL 318M/P-300-S12 is a precision industrial sensor engineered for demanding automation applications. Featuring IP67 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Light source: LASER, red emission
Protection rating: IP67 (dust-tight, water-resistant for washdown environments)
Supply voltage: 10...30 V DC with reverse polarity protection
Operating temperature: -25...60 °C
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model RTL 318M/P-300-S12). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 318
- Operating principle:
- Diffuse reflection principle
- Operating range:
- Guaranteed operating range
- Operating range, white 90%:
- 0 ... 0.3 m
- Operating range, gray 18%:
- 0.013 ... 0.14 m
- Operating range, black 6%:
- 0.018 ... 0.075 m
- Operating range limit, white 90%:
- 0 ... 0.35 m
- Operating range limit, gray 18%:
- 0.013 ... 0.18 m
- Operating range limit, black 6%:
- 0.018 ... 0.1 m
- Operating range limit:
- Typical operating range
- Beam path:
- Collimated
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Type of light spot geometry:
- Round
- Focus:
- Fixed
- Protective circuit:
- Polarity reversal protection,Short circuit protected,Transient protection
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 10 %, From UB
- Open-circuit current:
- 0 ... 25 mA
- Number of digital switching outputs:
- 2 Piece(s)
- Switching principle:
- Light switching
- Switching principle:
- Dark switching
- Switching frequency:
- 5,000 Hz
- Response time:
- 0.1 ms
- Readiness delay:
- 30 ms
- Function:
- Signal OUT,Voltage supply
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Male
- Material:
- Plastic
- No. of pins:
- 4 -pin
- Encoding:
- A-coded
- Dimension (Ø x L):
- 18 mm x 50 mm
- Thread size:
- M18 x 1 mm
- Housing material:
- Stainless steel
- Stainless steel housing:
- V2A
- Lens cover material:
- Plastic
- Net weight:
- 60 g
- Housing color:
- Black,Silver
- Type of display:
- LED
- Operational controls:
- 270° potentiometer
- Ambient temperature, operation:
- -25 ... 60 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270903
- ECLASS 8.0:
- 27270903
- ECLASS 9.0:
- 27270903
- ECLASS 10.0:
- 27270903
- ECLASS 11.0:
- 27270903
- ECLASS 12.0:
- 27270903
- ECLASS 13.0:
- 27270903
- ECLASS 14.0:
- 27270903
- ECLASS 15.0:
- 27270903
- ETIM 5.0:
- EC001821
- ETIM 6.0:
- EC001821
- ETIM 7.0:
- EC001821
- ETIM 8.0:
- EC001821
- ETIM 9.0:
- EC001821
- ETIM 10.0:
- EC001821
- Datasheet:
- View
- Declaration of Conformity:
- View
