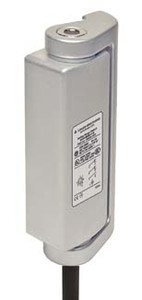

S400-M4CB2-T Safety hinge switch
- Series:
- S400
- Functions:
- Integration in control circuits up to category4 in accordance with EN ISO 13849-1,Locking device without guard interlocking according to EN ISO 14119,Mechanical hinge with integrated safety switch
- Mission time:
- 20 years, EN ISO 13849-1
- B10d:
- 2,000,000 number of cycles
- Usage category at DC 13:
- Ue 24 V, Ie 2 A, EN 60947-5-1
- Usage category at AC 15:
- Ue 24 V, Ie 2 A, EN 60947-5-1
- Contact allocation:
- 2NC + 1NO
- Contact opening:
- Force-fit
- Short circuit protected:
- 500 V, 2 A, type gG, IEC 60269-1
- Rated insulation voltage:
- 30 V AC, 36 V DC
- Conventional thermal current, max.:
- 2 A
- Number of connections:
- 1 Piece(s)
- Function:
- Contact connection
- Type of connection:
- Cable
- Cable length:
- 2,000 mm
- Sheathing material:
- PVC
- Number of conductors:
- 7 -wire
- Design:
- Cubic
- Dimension (W x H x L):
- 49 mm x 22.5 mm x 100.6 mm
- Housing material:
- Metal
- Metal housing:
- ZAMAK
- Electrical contact material:
- Silver alloy
- Net weight:
- 481 g
- Housing color:
- Silver
- Type of fastening:
- Mounting plate,Mounting thread
- Side of cable entry:
- From above (with left installation)
- Switch type:
- Interlock device without guard interlocking, ISO 14119
- Switching principle:
- Slow-action contact
- Axial stress:
- 1,500 N·m
- Radial stress:
- 1,000 N·m
- Torsional stress:
- 25 N·m
- Mechanical life time:
- 1,000,000 actuation cycles, IEC 6047-5-1
- Actuation frequency, max.:
- 1,200 per hour, IEC 6047-5-1
- Internal actuator:
- Safety switch in hinge, encapsulated
- Actuating path (angle) with forced separation:
- 4 N, From set switching point
- Actuation angle, max.:
- 180 °
- Ambient temperature, operation:
- -25 ... 80 °C
- Degree of contamination:
- 3, EN 60947-1
- Degree of protection:
- IP 67,IP 69K
- Approvals:
- IMQ,c UL US
- Customs tariff number:
- 85369095
- ECLASS 5.1.4:
- 27272690
- ECLASS 8.0:
- 27270609
- ECLASS 9.0:
- 27270609
- ECLASS 10.0:
- 27270609
- ECLASS 11.0:
- 27270609
- ECLASS 12.0:
- 27272608
- ECLASS 13.0:
- 27272608
- ECLASS 14.0:
- 27272608
- ECLASS 15.0:
- 27272608
- ETIM 5.0:
- EC002591
- ETIM 6.0:
- EC002591
- ETIM 7.0:
- EC002591
- ETIM 8.0:
- EC002591
- ETIM 9.0:
- EC002591
- ETIM 10.0:
- EC002591
- Datasheet:
- View
