Schmalz

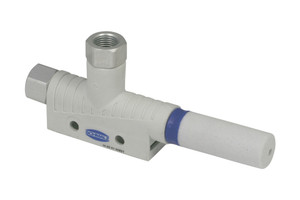

Schmalz SBP-05-G01-SDA Basic ejector for universal use

SKU:

10.02.01.00599

UPC:

MPN:

SBP-05-G01-SDA

Condition:

New

Nozzle diameter:

0.50 mm

Degree of evacuation:

85 %

Suction rate (max.):

0.50 m³/h

Suction rate (max.):

8 l/min

Air consumption suction:

0.80 m³/h

Air consumption suction:

13.50 l/min

Sound level free:

58 dB(A)

Sound level suction:

53 dB(A)

Pressure range (operating pressure):

3.0 ... 6.0 bar

Pressure optimal:

4.50 bar

Recomm. internal hose diameter compressed air:

2 mm

Recomm. internal hose diameter vacuum:

2 mm

Operating temperature:

0 ... 60 °C

Pressure range (operating pressure):

43.5 ... 87.0

Suction rate (max.):

0.28 cfm

Air consumption suction:

0.48 cfm

Weight:

7.50 g

Product family:

SBP

Datasheet:

View
