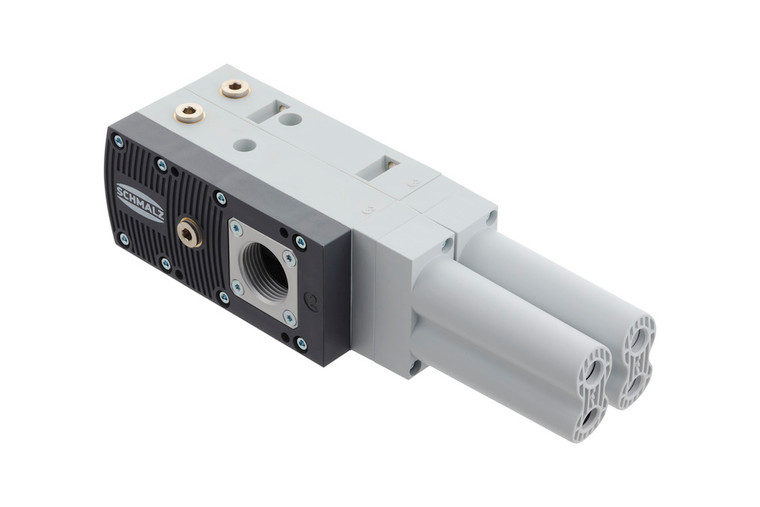

Schmalz SBPL-100-HF Basic ejector with maximum suction capacity
SchmalzAdd to Cart to View Price
Basic ejector with maximum suction capacity
- Size:
- 100
- Degree of evacuation:
- 60 %
- Max. vacuum:
- 600 mbar
- Suction rate (real):
- 860 l/min
- Suction rate (theo):
- 1300 l/min
- Suction rate (real):
- 51.60 m³/h
- Suction rate (theo):
- 78 m³/h
- Air consumption suction:
- 300 l/min
- Air consumption suction:
- 18.50 m³/h
- Sound level free:
- 69 dB(A)
- Sound level suction:
- 58 dB(A)
- Pressure range (operating pressure):
- 2.0 ... 6.0 bar
- Pressure range (operating pressure):
- 29.0 ... 87.0
- Recomm. internal hose diameter compressed air:
- 9 mm
- Recomm. internal hose diameter vacuum:
- 32 mm
- Weight:
- 1.10 kg
- Operating temperature:
- 0 ... 60 °C
- Max. vacuum:
- 17.72 inHg
- Product family:
- SBPL
- Datasheet:
- View
