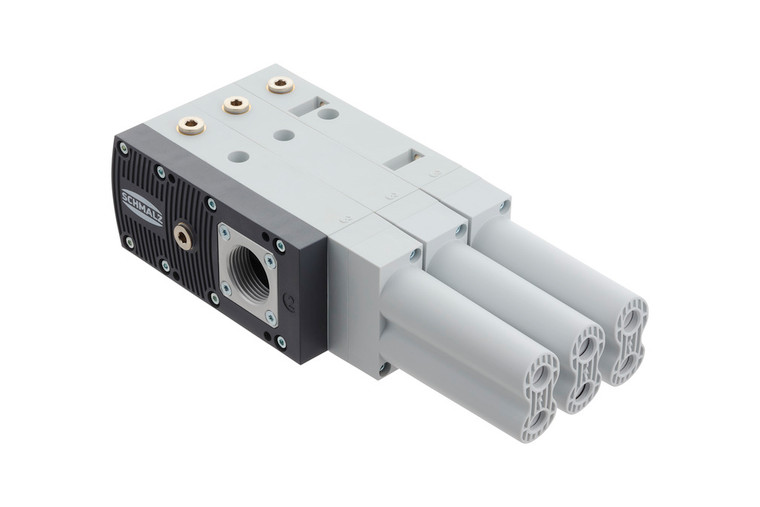

Schmalz SBPL-150-HF Basic ejector with maximum suction capacity
SchmalzAdd to Cart to View Price
(No reviews yet)
Write a Review
Write a Review
Schmalz
Schmalz SBPL-150-HF Basic ejector with maximum suction capacity
Basic ejector with maximum suction capacity
- Size:
- 150
- Degree of evacuation:
- 60 %
- Max. vacuum:
- 600 mbar
- Suction rate (real):
- 1120 l/min
- Suction rate (theo):
- 1950 l/min
- Suction rate (real):
- 67.20 m³/h
- Suction rate (theo):
- 117 m³/h
- Air consumption suction:
- 435 l/min
- Air consumption suction:
- 26.75 m³/h
- Sound level free:
- 71 dB(A)
- Sound level suction:
- 61 dB(A)
- Pressure range (operating pressure):
- 2.0 ... 6.0 bar
- Pressure range (operating pressure):
- 29.0 ... 87.0
- Recomm. internal hose diameter compressed air:
- 11 mm
- Recomm. internal hose diameter vacuum:
- 32 mm
- Weight:
- 1.50 kg
- Operating temperature:
- 0 ... 60 °C
- Max. vacuum:
- 17.72 inHg
- Product family:
- SBPL
- Datasheet:
- View
