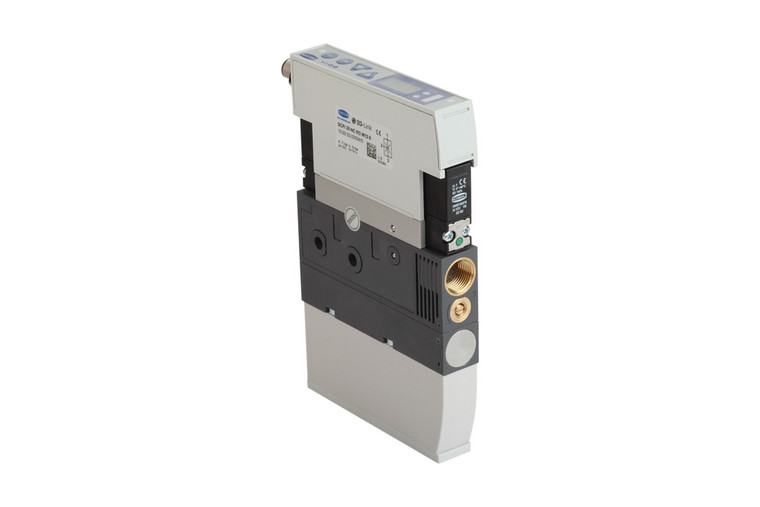

Schmalz SCPI-20-NC-RD-M12-5 Compact ejector with fully integrated functionality

Schmalz SCPI-20-NC-RD-M12-5 Compact ejector with fully integrated functionality

Schmalz
SKU:
10.02.02.03358

Add to Cart to View Price

(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

Compact ejector with fully integrated functionality

Additional Information
Degree of evacuation:
85 %
Suction rate (max.):
8.40 m³/h
Suction rate (max.):
140 l/min
Air consumption suction:
11.70 m³/h
Air consumption suction:
180 l/min
Max. air consumption blow off:
200 l/min
Sound level free:
75 dB(A)
Pressure range (operating pressure):
4.0 ... 7.0 bar
Recomm. internal hose diameter compressed air:
6 mm
Recomm. internal hose diameter vacuum:
8 mm
Control valve:
Normally closed
Nozzle diameter:
2 mm
Weight:
0.56 kg
Operating temperature:
0 ... 50 °C
Pressure range (operating pressure):
58.0 ... 101.5
Suction rate (max.):
4.94 cfm
Air consumption suction:
6.36 cfm
Max. vacuum:
-25.10 inHg
Product family:
SCPi
Datasheet:
View
