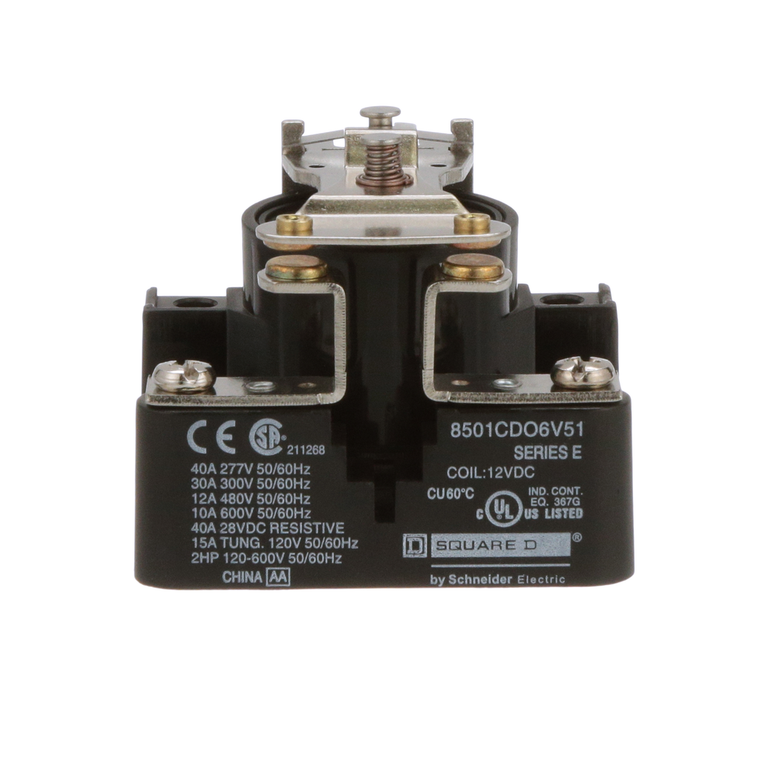

Schneider Electric 8501CDO6V51 Relay 600Vac 10Amp Type C +Options
Schneider Electric
$39.89
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8501CDO6V51 Relay 600Vac 10Amp Type C +Options
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPST contact configuration with one normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 12 VDC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 2 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 10 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
- Product Or Component Type:
- power relay
- Reach Free Of Svhc:
- Yes
- Product Certifications:
- UL listed file E78351 CCN NLDX || CSA || CE
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -22-140 °F
- Range Of Product:
- Power Relay 8501C
- Environmental Disclosure:
- ENVPEP1705008EN
- Connections - Terminals:
- screw clamp terminal
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Height:
- 2.43 in
- Contacts Type And Composition:
- 1 NO
- Rohs Exemption Information:
- Yes
- Mounting Support:
- panel mounting
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Line Rated Current:
- 30 A
- Rated Power In Hp:
- 2 hp
- Maximum Switching Voltage:
- 600 V AC
- Catalog Class:
- 8501
- Hold-In Power Consumption In W:
- 2-2 W
- Circularity Profile:
- N/A
- Device Short Name:
- type C
- Depth:
- 2.25 in
- Device Application:
- suited for controlling small single phase motors and other light loads
- Phase:
- 1 phase
- Warranty:
- 18 months
- [Uc] Control Circuit Voltage:
- 12 V DC
- Width:
- 2.5 in
- Awg Gauge:
- AWG 10 copper
- Switch Function:
- SPST
- Tightening Torque:
- 11-15 lbf.in
- Toxic Heavy Metal Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
