Schneider Electric

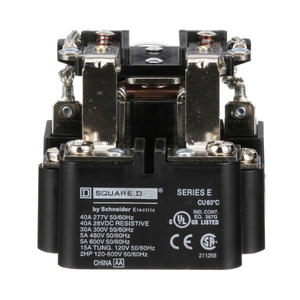

Schneider Electric 8501CO15V20 Relay 600Vac 5Amp Type C +Options

(No reviews yet) Write a Review
SKU:
8501CO15V20
UPC:
785901052104
Condition:
New
Switch Function:
SPDT
Device Short Name:
type C
Height:
2.43 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Sustainable Offer Status:
Green Premium product
Maximum Switching Voltage:
600 V AC
Product Certifications:
UL listed file E78351 CCN NLDX || CSA || CE
Width:
2.5 in
Tightening Torque:
11-15 lbf.in
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Catalog Class:
8501
Ambient Air Temperature For Operation:
-22-122 °F
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Awg Gauge:
AWG 10 copper
Phase:
1 phase
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP1705008EN
Depth:
2.18 in
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of Svhc:
Yes
Contacts Type And Composition:
1 NO/1 NC
Range Of Product:
Power Relay 8501C
[Uc] Control Circuit Voltage:
120 V AC 50/60 Hz
Mounting Support:
panel mounting
Hold-In Power Consumption In Va:
10-10 VA
Line Rated Current:
30 A
Rated Power In Hp:
2.0 hp
Toxic Heavy Metal Free:
Yes
China Rohs Regulation:
X
Device Application:
suited for controlling small single phase motors and other light loads
Product Or Component Type:
power relay
Mercury Free:
Yes
Connections - Terminals:
screw clamp terminal
Warranty:
18 months
Circularity Profile:
N/A
Catalog:
View
Datasheet:
View
$69.54

Description

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPDT contact configuration with one normally open and one normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
