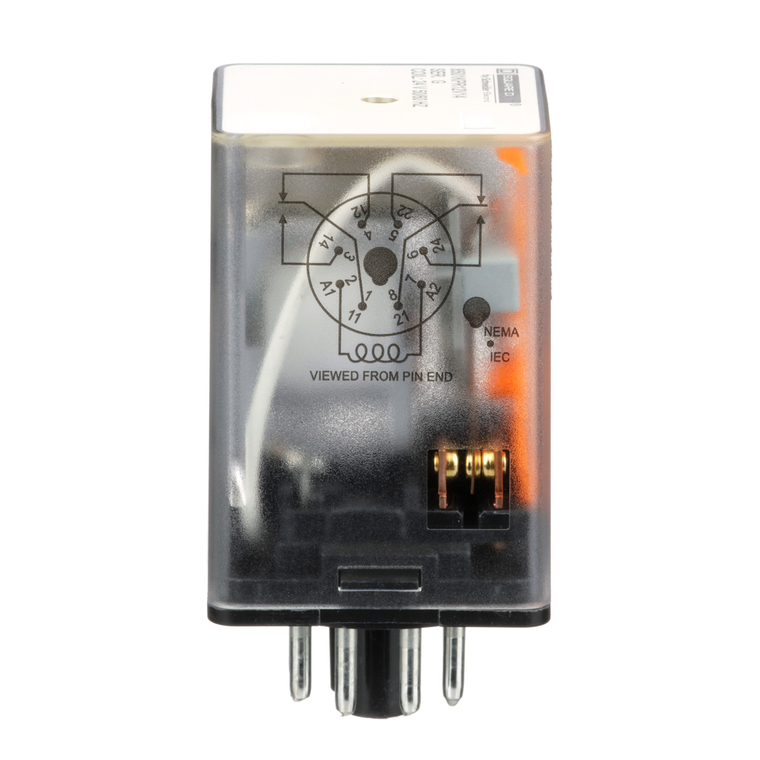

Schneider Electric 8501KPR12V14 Relay 2Co Cyl Pin 10A@240V 24Vac Coil

Schneider Electric 8501KPR12V14 Relay 2Co Cyl Pin 10A@240V 24Vac Coil

Schneider Electric
SKU:
8501KPR12V14
|
UPC:
785901981107
$47.58
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Additional Information
Rated Breaking Capacity:
3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508
Product Certifications:
UL Listed || UL Recognized || CSA || CE
Operating Time:
20 ms - pick-up || 20 ms - drop-out
Product Or Component Type:
relay
Maximum Switching Voltage:
300 V AC || 30 V DC
Height:
2.66 in
Product Compatibility:
8501NR52 || 8501NR51
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rated Power In Hp:
1 hp 277 V AC || 0.33 hp 120 V AC
China Rohs Regulation:
X
Environmental Disclosure:
ENVPEP1406038EN
Shape Of Pin:
tubular
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Control Type:
without test button
Contacts Material:
silver alloy (AgNi)
Mounting Support:
socket
[Uc] Control Circuit Voltage:
24 V AC
Local Signalling:
no indicator
Reach Free Of Svhc:
Yes
Relay Type:
general purpose
Rohs Exemption Information:
Yes
Circularity Profile:
N/A
Range Of Product:
8501K
Sustainable Offer Status:
Green Premium product
Switch Function:
DPDT
Width:
1.4 in
Ambient Air Temperature For Operation:
-40-131 °F
Depth:
1.4 in
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Catalog:
View
Datasheet:
View
