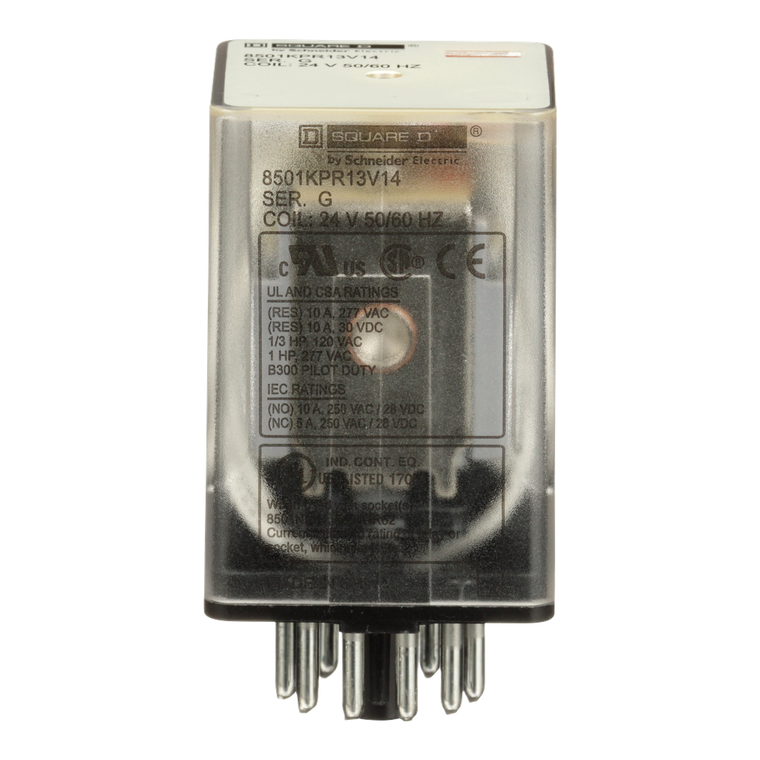

Schneider Electric 8501KPR13V14 Relay 3Co Cyl Pin 6.6A@240V 24Vac Coil

(No reviews yet) Write a Review

Write a Review

Schneider Electric 8501KPR13V14 Relay 3Co Cyl Pin 6.6A@240V 24Vac Coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

8501KPR13V14

UPC:

785901981374

MPN:

Condition:

New

Depth:

1.4 in

Control Type:

without test button

Switch Function:

3PDT

Operating Time:

20 ms - pick-up || 20 ms - drop-out

[Uc] Control Circuit Voltage:

24 V AC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Environmental Disclosure:

ENVPEP1406038EN

Reach Free Of Svhc:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

N/A

Rated Breaking Capacity:

3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508

Ambient Air Temperature For Operation:

-40-131 °F

Maximum Switching Voltage:

300 V AC || 30 V DC

Product Certifications:

UL Listed || UL Recognized || CSA || CE

Sustainable Offer Status:

Green Premium product

Height:

2.66 in

Range Of Product:

8501K

Contacts Material:

silver alloy (AgNi)

Rated Power In Hp:

1 hp 277 V AC || 0.33 hp 120 V AC

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Shape Of Pin:

tubular

Mounting Support:

socket

Relay Type:

general purpose

Local Signalling:

no indicator

Product Or Component Type:

relay

Product Compatibility:

8501NR62 || 8501NR61

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Width:

1.4 in

Catalog:

View

Datasheet:

View
