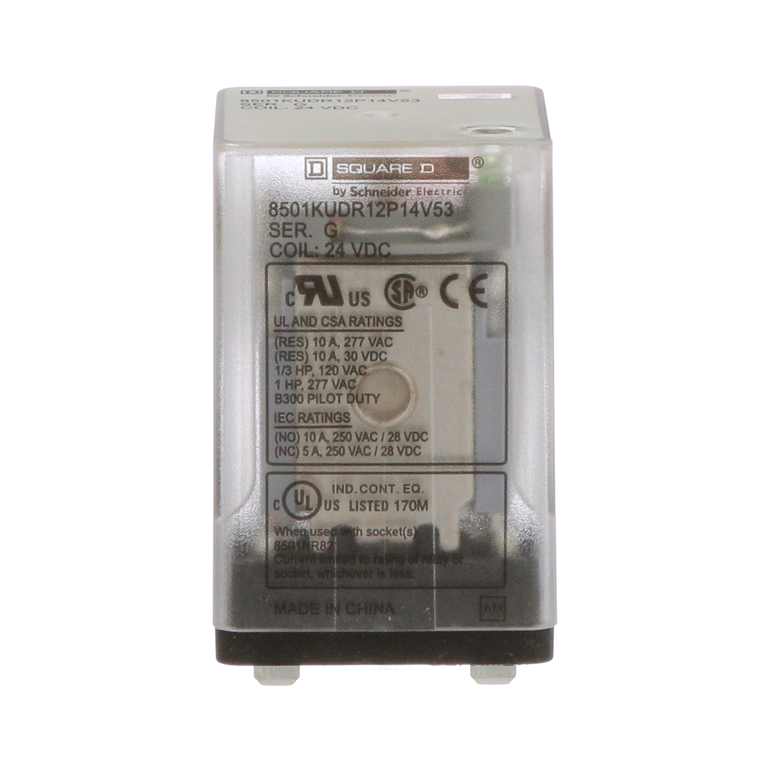

Schneider Electric 8501KUDR12P14V53 Relay 2Co Qc Pin 10A@240V 24Vdc Coil Led

(No reviews yet) Write a Review
SKU:
8501KUDR12P14V53
UPC:
785901191063
Condition:
New
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Depth:
1.4 in
Environmental Disclosure:
ENVPEP1406038EN
Width:
1.37 in
China Rohs Regulation:
X
Maximum Switching Voltage:
300 V AC || 30 V DC
Rated Power In Hp:
1 hp 277 V AC || 0.33 hp 120 V AC
Reach Free Of Svhc:
Yes
Contacts Material:
silver alloy (AgNi)
Mounting Support:
socket
Operating Time:
20 ms - pick-up || 20 ms - drop-out
Circularity Profile:
N/A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption Information:
Yes
Local Signalling:
indicator light relay energised LED
Range Of Product:
8501K
[Uc] Control Circuit Voltage:
24 V DC
Shape Of Pin:
spade
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-40-131 °F
Product Compatibility:
8501NR82
Product Certifications:
UL Listed || UL Recognized || CSA || CE
Switch Function:
DPDT
Relay Type:
general purpose
Height:
2.25 in
Product Or Component Type:
relay
Rated Breaking Capacity:
3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508
Catalog:
View
Datasheet:
View
  • Schneider Electric 8501KUDR12P14V53 Relay 2Co Qc Pin 10A@240V 24Vdc Coil Led
  • Schneider Electric 8501KUDR12P14V53 Relay 2Co Qc Pin 10A@240V 24Vdc Coil Led
  • Schneider Electric 8501KUDR12P14V53 Relay 2Co Qc Pin 10A@240V 24Vdc Coil Led
$35.01

Description

8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
