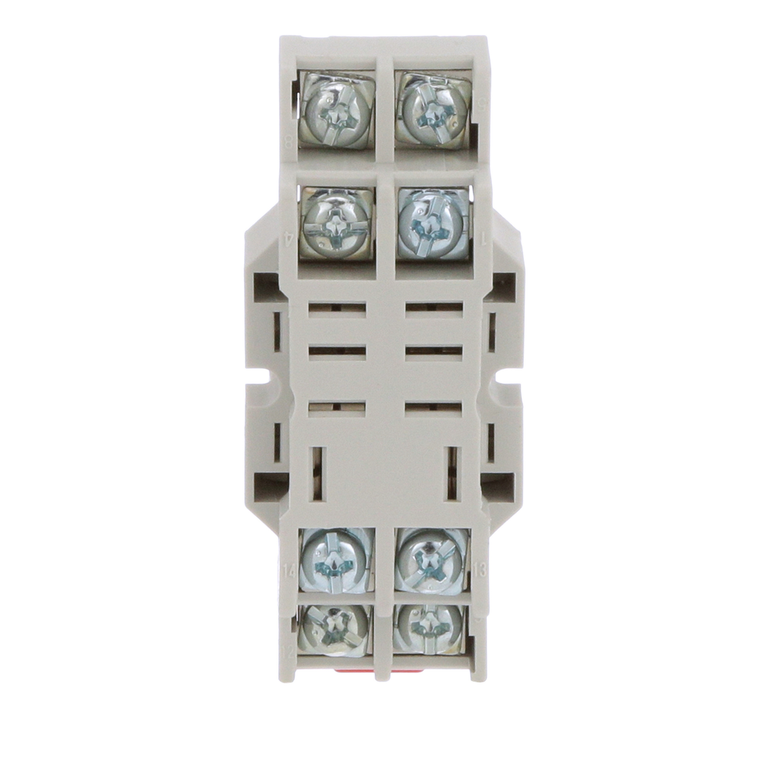

Schneider Electric 8501NR42B Relay Socket 300Vac 10Amp Type R +Option Pack of 10
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS42 or 8501RSD42 relay will plug into this relay socket which is designed for 8 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified. These relay sockets are packed with ten sockets per box to make it quicker to get the sockets out on the packing and to reduce packing waste.
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- X
- Line Rated Current:
- 10 A 300 V AC
- Range Of Product:
- 8501N
- Depth:
- 25.27 mm
- Mounting Support:
- DIN rail || panel
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Width:
- 29.92 mm
- Toxic Heavy Metal Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Shape Of Pin:
- spade
- Environmental Disclosure:
- ENVPEP1511021EN
- Quantity Per Set:
- set of 10
- Electrical Connection:
- double tiered screw clamp terminals
- Height:
- 69.09 mm
- Mercury Free:
- Yes
- Product Certifications:
- UL Recognized || CSA || CE
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- Relay Socket
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
