Schneider Electric 8501NR61B Relay Socket 600Vac 5Amp Type K +Options Pack of 10

(No reviews yet) Write a Review
SKU:
8501NR61B
UPC:
785901006022
Condition:
New
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Electrical Connection:
single tiered screw clamp terminals
Product Or Component Type:
Relay Socket
Toxic Heavy Metal Free:
Yes
Reach Free Of Svhc:
Yes
Product Certifications:
UL Recognized || CSA || CE
Circularity Profile:
N/A
Environmental Disclosure:
ENVPEP1511021EN
Width:
59 mm
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Warranty:
18 months
China Rohs Regulation:
X
Line Rated Current:
15 A 300 V AC || 5 A 600 V AC
Range Of Product:
8501N
Mounting Support:
panel || DIN rail
Rohs Exemption Information:
Yes
Depth:
24.6 mm
Shape Of Pin:
tubular
Quantity Per Set:
set of 10
Height:
54.8 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Catalog:
View
Datasheet:
View
  • Schneider Electric 8501NR61B Relay Socket 600Vac 5Amp Type K +Options Pack of 10
  • Schneider Electric 8501NR61B Relay Socket 600Vac 5Amp Type K +Options Pack of 10
$201.30

Description

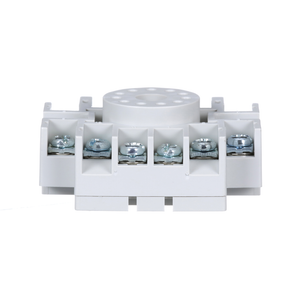

8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR13 and 8501KPDR13 relays and 9050JCK timers will plug into this relay socket which is designed for 11 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified. These relay sockets are packed with ten sockets per box to make it quicker to get the sockets out on the packing and to reduce packing waste.
