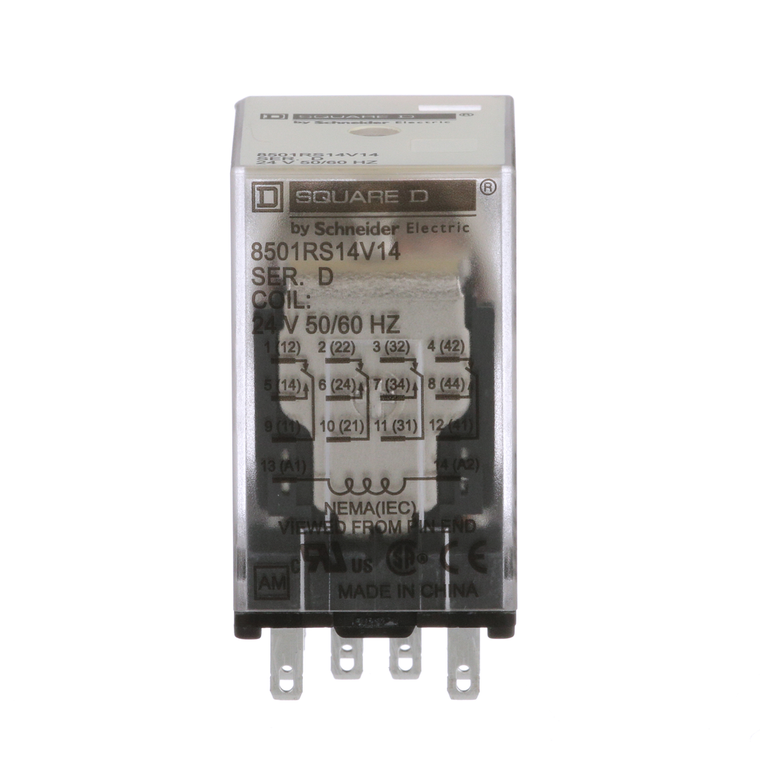

Schneider Electric 8501RS14V14 Relay 240Vac 5Amp Type R +Options

(No reviews yet) Write a Review
SKU:
8501RS14V14
UPC:
785901559283
Condition:
New
Rated Power In Hp:
0.33 120 V AC || 0.5 277 V AC
Product Certifications:
UL Listed || UL Recognized || CSA || CE
Switch Function:
4PDT
Warranty:
18 months
Rohs Exemption Information:
Yes
Reach Free Of Svhc:
Yes
China Rohs Regulation:
X
Mounting Support:
socket
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Range Of Product:
8501R
Environmental Disclosure:
ENVPEP1511008EN
Maximum Switching Voltage:
300 V AC || 30 V DC
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Or Component Type:
Miniature Relay
Relay Type:
low voltage
Ambient Air Temperature For Operation:
-40-131 °F
[Uc] Control Circuit Voltage:
24 V AC
Shape Of Pin:
spade
Control Type:
without test button
Circularity Profile:
N/A
Product Compatibility:
8501NR45
Sustainable Offer Status:
Green Premium product
Width:
21 mm
Operating Time:
20 ms - pick-up || 20 ms - drop-out
Rated Breaking Capacity:
3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 8 A 120 V AC resistive control circuit UL 508 || 6 A 277 V AC resistive control circuit UL 508 || 8 A 30 V DC resistive control circuit UL 508
Height:
27.9 mm
Contacts Material:
silver alloy, gold flashed
Local Signalling:
no indicator
Depth:
41.5 mm
Catalog:
View
Datasheet:
View
  • Schneider Electric 8501RS14V14 Relay 240Vac 5Amp Type R +Options
  • Schneider Electric 8501RS14V14 Relay 240Vac 5Amp Type R +Options
  • Schneider Electric 8501RS14V14 Relay 240Vac 5Amp Type R +Options
$39.89

Description

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 6 ampere resistive rating at 277 VAC, an 8 ampere resistive rating at 120 VAC and 30 VDC, a 1/3 HP rating at 120 VAC, a 1/2 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
