Schneider Electric 8501RS24V20 Relay 240Vac 1Amp Type R +Options
Schneider Electric
$64.66
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

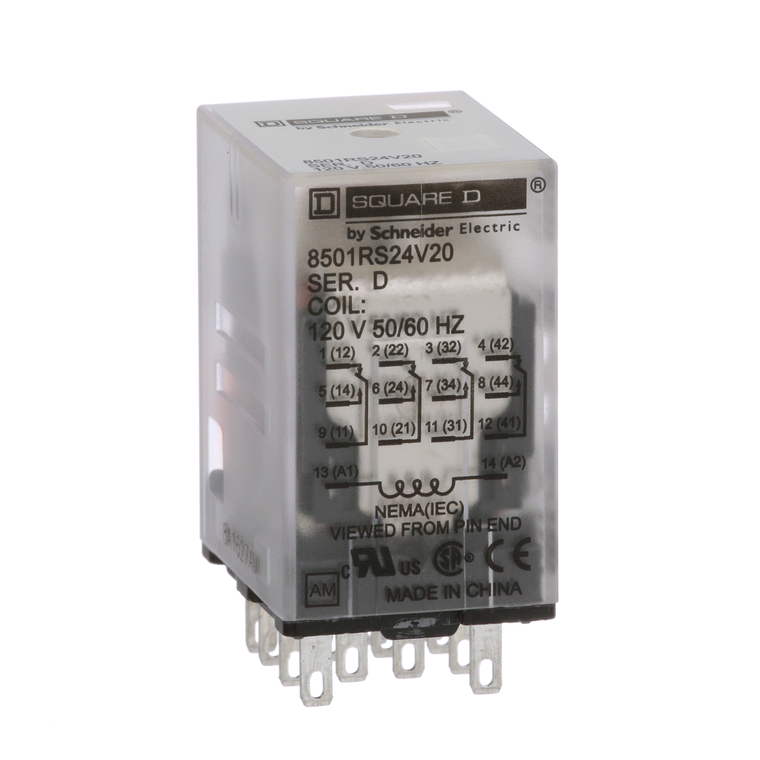

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 3 ampere resistive rating at 277 VAC, at 120 VAC and at 30 VDC, a 1/16 HP rating at 120 VAC, and a 0.5 amperage inductive break rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
- Switch Function:
- 4PDT
- Height:
- 27.9 mm
- [Uc] Control Circuit Voltage:
- 120 V AC
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Product Compatibility:
- 8501NR45
- Local Signalling:
- no indicator
- Rated Power In Hp:
- 0.167 120 V AC
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Pin:
- spade
- Warranty:
- 18 months
- Circularity Profile:
- N/A
- Product Certifications:
- UL Listed || UL Recognized || CSA || CE
- Width:
- 21 mm
- Depth:
- 41.5 mm
- Ambient Air Temperature For Operation:
- -40-131 °F
- Rated Breaking Capacity:
- 0.5 A 120 V AC inductive control circuit UL 508 || 3 A 120 V AC resistive control circuit UL 508 || 3 A 277 V AC resistive control circuit UL 508 || 3 A 30 V DC resistive control circuit UL 508
- Mounting Support:
- socket
- Relay Type:
- low voltage
- Rohs Exemption Information:
- Yes
- Contacts Material:
- gold plated bifurcated silver
- Range Of Product:
- 8501R
- Operating Time:
- 20 ms - pick-up || 20 ms - drop-out
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Maximum Switching Voltage:
- 300 V AC || 30 V DC
- Reach Free Of Svhc:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Product Or Component Type:
- Miniature Relay
- Control Type:
- without test button
- Environmental Disclosure:
- ENVPEP1511008EN
