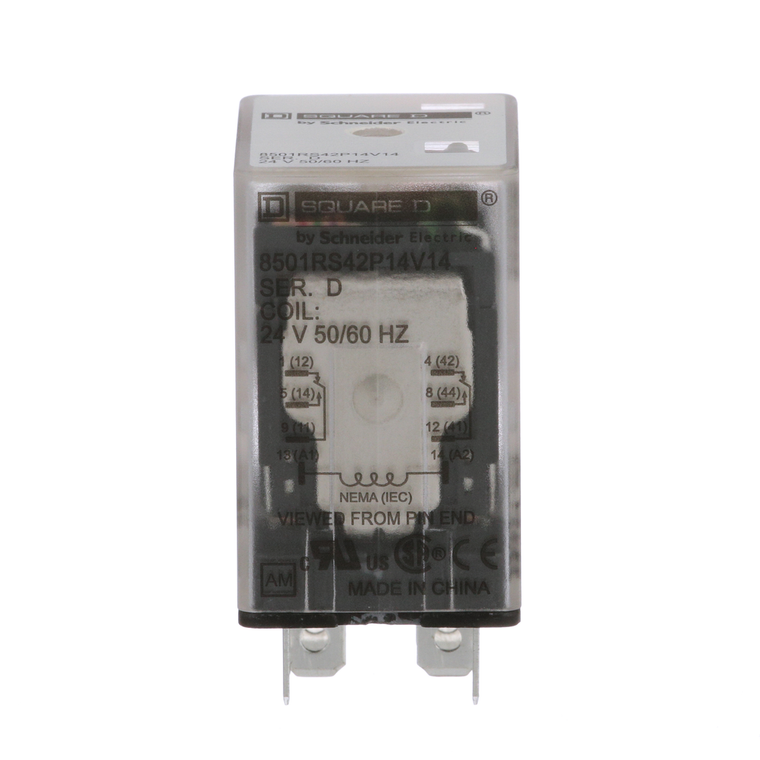

Schneider Electric 8501RS42P14V14 Relay240Vac15Amptyper+Options
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL Listed || UL Recognized || CSA || CE
- Switch Function:
- DPDT
- Product Compatibility:
- 8501NR42
- Environmental Disclosure:
- ENVPEP1511008EN
- Mounting Support:
- socket
- Depth:
- 41.8 mm
- China Rohs Regulation:
- X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Relay Type:
- standard
- [Uc] Control Circuit Voltage:
- 24 V AC
- Rated Power In Hp:
- 0.5 120 V AC || 1 277 V AC
- Height:
- 27.3 mm
- Contacts Material:
- silver alloy, gold flashed
- Shape Of Pin:
- spade
- Operating Time:
- 20 ms - pick-up || 20 ms - drop-out
- Control Type:
- without test button
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Sustainable Offer Status:
- Green Premium product
- Reach Free Of Svhc:
- Yes
- Local Signalling:
- green indicator relay energised LED
- Rated Breaking Capacity:
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 15 A 120 V AC resistive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 15 A 28 V DC resistive control circuit UL 508
- Maximum Switching Voltage:
- 300 V AC || 30 V DC
- Width:
- 21 mm
- Range Of Product:
- 8501R
- Warranty:
- 18 months
- Circularity Profile:
- N/A
- Product Or Component Type:
- Miniature Relay
- Ambient Air Temperature For Operation:
- -40-131 °F
