Name: Schneider Electric 8501RS42P14V20 Relay240Vac15Amptyper+Options
SKU: 8501RS42P14V20
Price: 52.58 USD
Availability: InStock

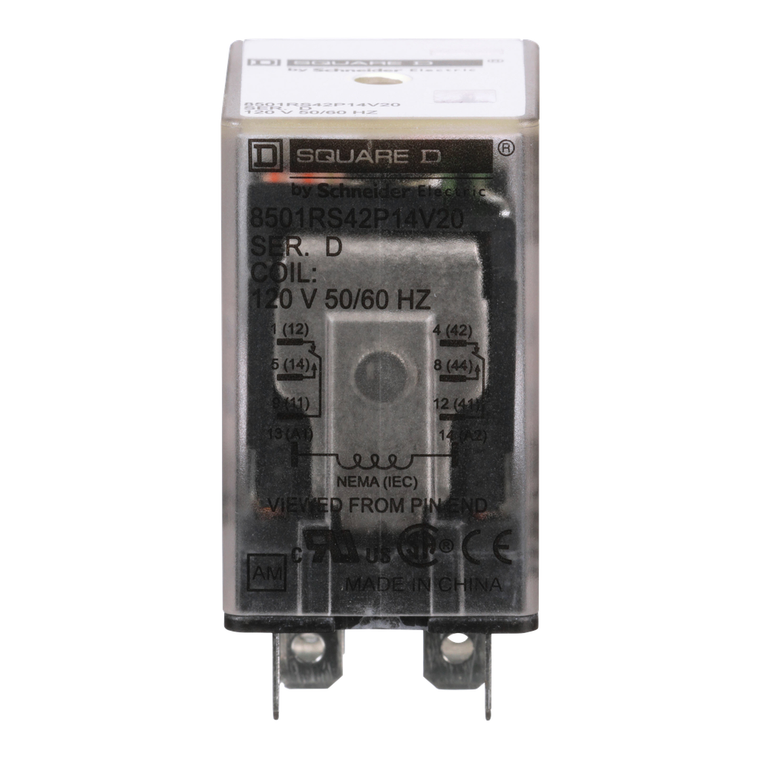

Schneider Electric 8501RS42P14V20 Relay240Vac15Amptyper+Options

(No reviews yet) Write a Review

SKU:

8501RS42P14V20

UPC:

785901131342

Condition:

New

Switch Function:

DPDT

Rohs Exemption Information:

Yes

Product Certifications:

UL Listed || UL Recognized || CSA || CE

Ambient Air Temperature For Operation:

-40-131 Â°F

Sustainable Offer Status:

Green Premium product

Contacts Material:

silver alloy, gold flashed

Environmental Disclosure:

ENVPEP1511008EN

Reach Free Of Svhc:

Yes

Height:

27.3 mm

Mounting Support:

socket

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Relay Type:

standard

Warranty:

18 months

Width:

21 mm

Circularity Profile:

N/A

Local Signalling:

green indicator relay energised LED

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Compatibility:

8501NR42

Rated Breaking Capacity:

3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 15 A 120 V AC resistive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 15 A 28 V DC resistive control circuit UL 508

Product Or Component Type:

Miniature Relay

Control Type:

without test button

Shape Of Pin:

spade

Range Of Product:

8501R

Rated Power In Hp:

0.5 120 V AC || 1 277 V AC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Switching Voltage:

300 V AC || 30 V DC

[Uc] Control Circuit Voltage:

120 V AC

Depth:

41.8 mm

Operating Time:

20 ms - pick-up || 20 ms - drop-out

China Rohs Regulation:

Catalog:

View

Datasheet:

View

Description

Description

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
