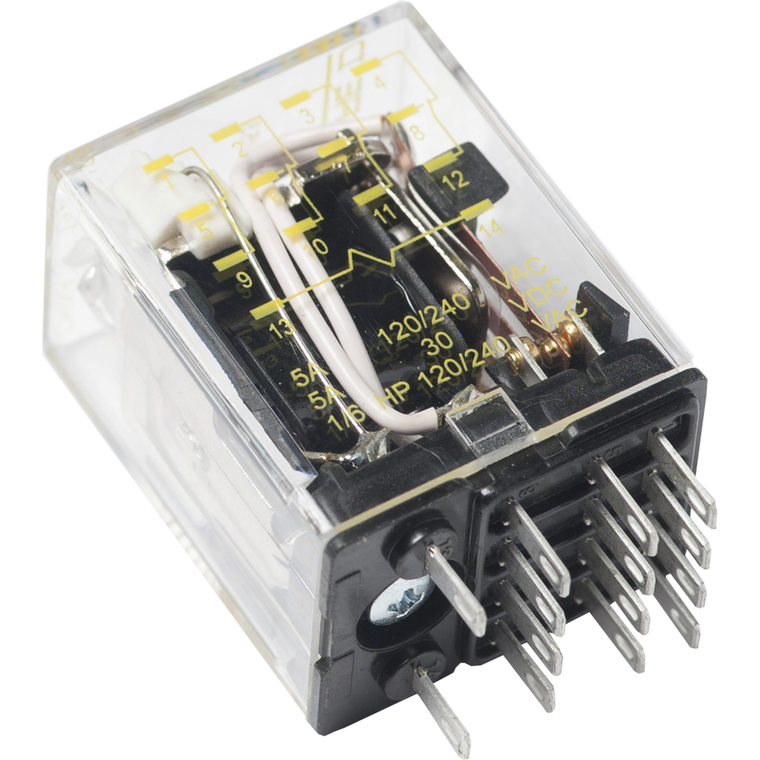

Schneider Electric 8501RSD14P14V53 Relay 240Vac 5Amp Type R +Options

(No reviews yet) Write a Review
SKU:
8501RSD14P14V53
UPC:
785901584070
Condition:
New
Maximum Switching Voltage:
300 V AC || 30 V DC
China Rohs Regulation:
X
Circularity Profile:
N/A
Control Type:
without test button
Reach Free Of Svhc:
Yes
Range Of Product:
8501R
Local Signalling:
green indicator relay energised LED
Environmental Disclosure:
ENVPEP1511008EN
Contacts Material:
silver alloy, gold flashed
Product Or Component Type:
Miniature Relay
Width:
21 mm
Height:
27.9 mm
Product Certifications:
UL Listed || UL Recognized || CSA || CE
Rohs Exemption Information:
Yes
Rated Breaking Capacity:
3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 8 A 120 V AC resistive control circuit UL 508 || 6 A 277 V AC resistive control circuit UL 508 || 8 A 30 V DC resistive control circuit UL 508
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Rated Power In Hp:
0.33 120 V AC || 0.5 277 V AC
Relay Type:
low voltage
Depth:
41.5 mm
Operating Time:
20 ms - pick-up || 20 ms - drop-out
Mounting Support:
socket
Product Compatibility:
8501NR45
Switch Function:
4PDT
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
-40-131 °F
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Shape Of Pin:
spade
[Uc] Control Circuit Voltage:
24 V DC
Catalog:
View
Datasheet:
View
$44.90

Description

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 6 ampere resistive rating at 277 VAC, an 8 ampere resistive rating at 120 VAC and 30 VDC, a 1/3 HP rating at 120 VAC, a 1/2 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
