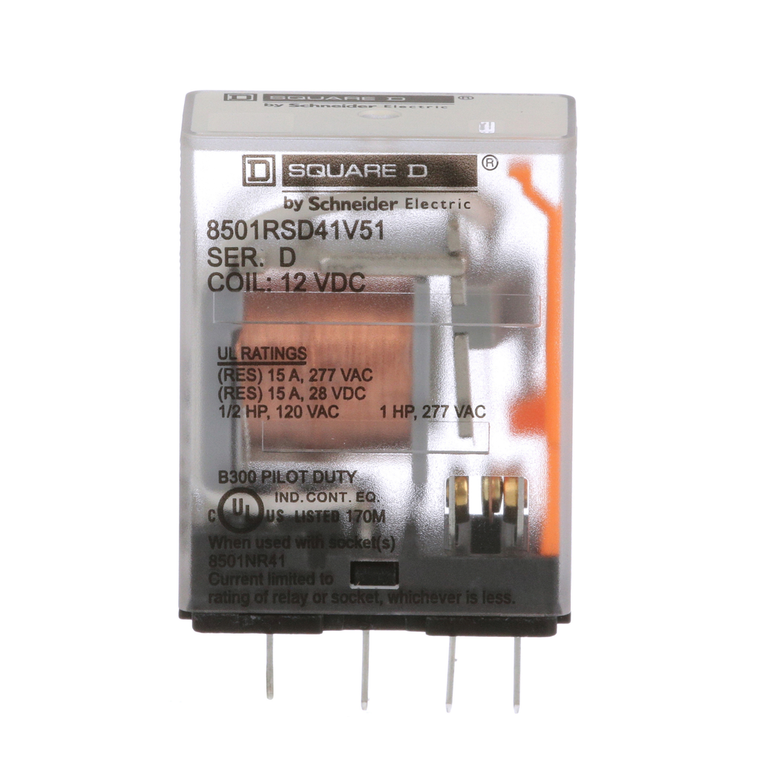

Schneider Electric 8501RSD41V51 Relay240Vac15Amptyper+Options
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 12 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
- Control Type:
- without test button
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Relay Type:
- standard
- Range Of Product:
- 8501R
- Rated Breaking Capacity:
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 15 A 120 V AC resistive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 15 A 28 V DC resistive control circuit UL 508
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rated Power In Hp:
- 0.5 120 V AC || 1 277 V AC
- Product Compatibility:
- 8501NR41
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Width:
- 14 mm
- Environmental Disclosure:
- ENVPEP1511008EN
- Product Certifications:
- UL Listed || UL Recognized || CSA || CE
- Contacts Material:
- silver alloy, gold flashed
- Switch Function:
- SPDT
- Height:
- 27.3 mm
- Product Or Component Type:
- Miniature Relay
- Mounting Support:
- socket
- [Uc] Control Circuit Voltage:
- 12 V DC
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Local Signalling:
- no indicator
- Circularity Profile:
- N/A
- Ambient Air Temperature For Operation:
- -40-131 °F
- Depth:
- 41.8 mm
- Operating Time:
- 20 ms - pick-up || 20 ms - drop-out
- Maximum Switching Voltage:
- 300 V AC || 30 V DC
- China Rohs Regulation:
- X
- Shape Of Pin:
- spade
