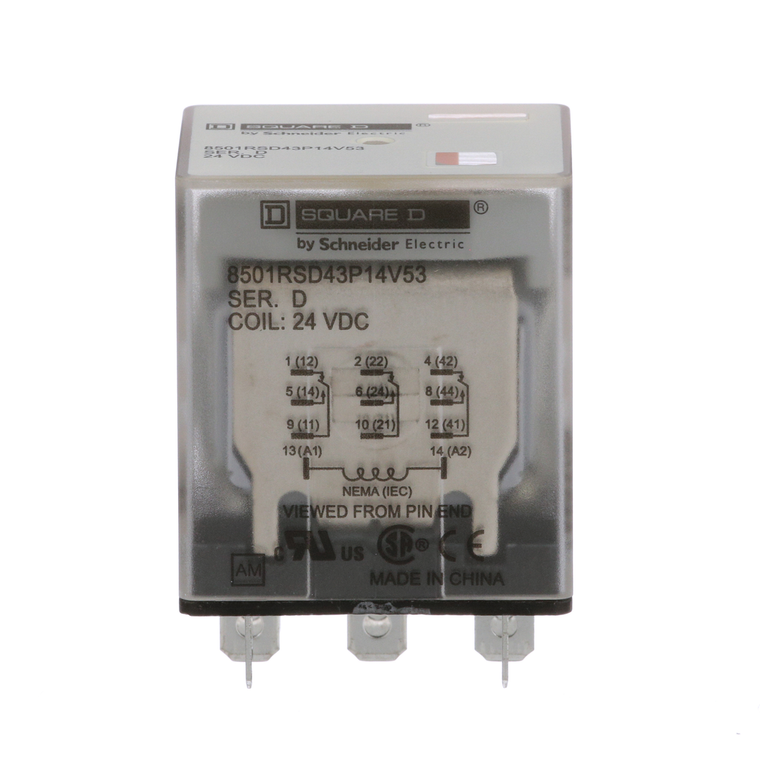

Schneider Electric 8501RSD43P14V53 Relay250Vac15Amptyper+Options
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR43 or 8501NR43B relay socket. Relay is available with 3PDT contact arrangements. It has three normally open and three normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
- Product Certifications:
- UL Listed || UL Recognized || CSA || CE
- China Rohs Regulation:
- X
- Product Compatibility:
- 8501NR43
- Range Of Product:
- 8501R
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Ambient Air Temperature For Operation:
- -40-131 °F
- Switch Function:
- 3PDT
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Maximum Switching Voltage:
- 300 V AC || 30 V DC
- [Uc] Control Circuit Voltage:
- 24 V DC
- Local Signalling:
- green indicator relay energised LED
- Environmental Disclosure:
- ENVPEP1511008EN
- Width:
- 30.6 mm
- Control Type:
- without test button
- Shape Of Pin:
- spade
- Contacts Material:
- silver alloy, gold flashed
- Mounting Support:
- socket
- Relay Type:
- standard
- Rated Breaking Capacity:
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 120 V AC resistive control circuit UL 508 || 6.67 A 277 V AC resistive control circuit UL 508 || 10 A 28 V DC resistive control circuit UL 508
- Height:
- 27.3 mm
- Warranty:
- 18 months
- Depth:
- 41.8 mm
- Operating Time:
- 20 ms - pick-up || 20 ms - drop-out
- Product Or Component Type:
- Miniature Relay
- Rated Power In Hp:
- 0.5 120 V AC || 1 277 V AC
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
