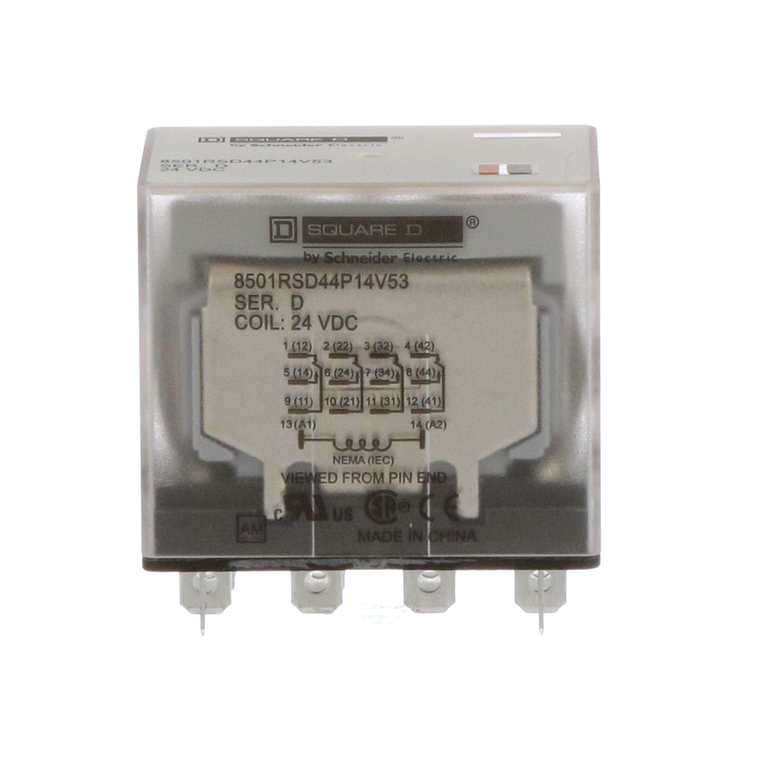

Schneider Electric 8501RSD44P14V53 Relay250Vac15Amptyper+Options
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR34 or 8501NR34B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
- Local Signalling:
- green indicator relay energised LED
- Depth:
- 41.8 mm
- Operating Time:
- 20 ms - pick-up || 20 ms - drop-out
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Contacts Material:
- silver alloy, gold flashed
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- Miniature Relay
- Ambient Air Temperature For Operation:
- -40-131 °F
- Rated Breaking Capacity:
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 120 V AC resistive control circuit UL 508 || 6.67 A 277 V AC resistive control circuit UL 508 || 10 A 28 V DC resistive control circuit UL 508
- Width:
- 40.6 mm
- [Uc] Control Circuit Voltage:
- 24 V DC
- Maximum Switching Voltage:
- 300 V AC || 30 V DC
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Height:
- 27.3 mm
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Range Of Product:
- 8501R
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Product Compatibility:
- 8501NR34
- Rated Power In Hp:
- 0.5 120 V AC || 1 277 V AC
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Switch Function:
- 4PDT
- Shape Of Pin:
- spade
- Environmental Disclosure:
- ENVPEP1511008EN
- Relay Type:
- standard
- Control Type:
- without test button
- Product Certifications:
- UL Listed || UL Recognized || CSA || CE
- China Rohs Regulation:
- X
- Mounting Support:
- socket
