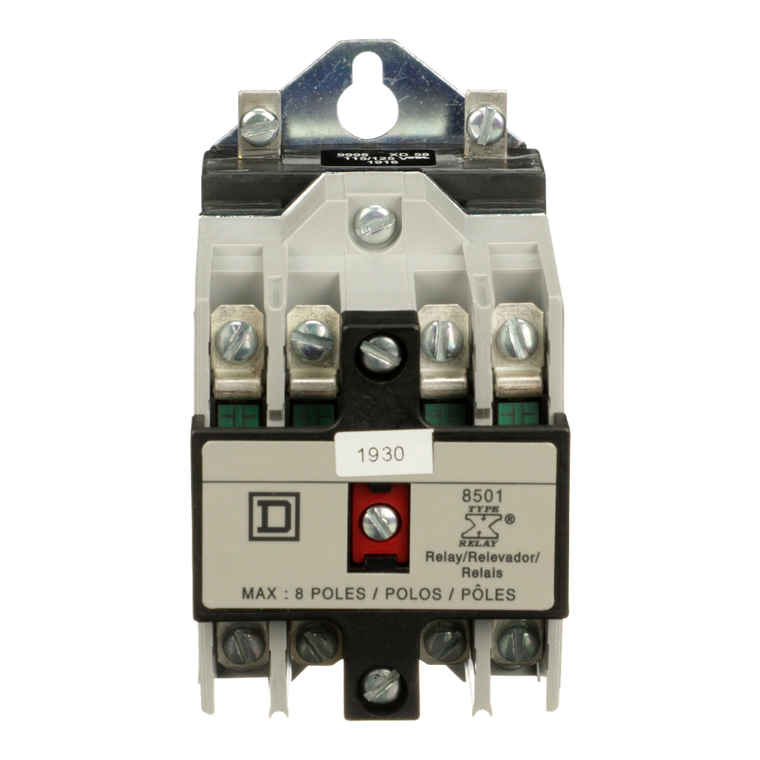

Schneider Electric 8501XDO40V62Y414 Relay 600Vac 10Amp Nema +Options

Schneider Electric 8501XDO40V62Y414 Relay 600Vac 10Amp Nema +Options

Schneider Electric
SKU:
8501XDO40V62Y414
|
UPC:
785901743385
Availability:
Contact us to confirm availability and lead times.
$313.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with four 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pan head screws so ring tongue terminals can be used. 18 to 12 AWG copper wire can be used with this relay. Relay has a 115/125 VDC replaceable coil. Relay is UL listed and CSA certified. Relay is UL listed and CSA certified.
Additional Information
Range Of Product:
8501X
Contacts Type And Composition:
4 NO 4 standard contact cartridges
Operating Time:
37 ms - pick-up || 21 ms - drop-out
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Line Rated Current:
10 A AC || 5 A DC
Mercury Free:
Yes
Control Circuit Voltage Limits:
operational 0.8...1.1 Uc DC
Awg Gauge:
AWG 18...AWG 12 copper
Width:
2.23 in
Product Or Component Type:
relay
[Uc] Control Circuit Voltage:
115/125 V DC
Height:
3.56 in
Environmental Disclosure:
ENVPEP1310013EN
Ambient Air Temperature For Operation:
-40-160 °F
Product Certifications:
UL listed file E78403 CCN NKCR || CSA LR60905 class 3211 03
Depth:
5.17 in
Rated Breaking Capacity:
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 ||
China Rohs Regulation:
X
Mounting Support:
panel
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty:
18 months
Inrush Power In W:
18 W
Electrical Connection:
ring tongue
Hold-In Power Consumption In W:
18-18 W
Circularity Profile:
ENVEOLI1310013
Tightening Torque:
control circuit 1.02-1.36 N.m screw terminals
Relay Type:
control
[Icm] Rated Short-Circuit Making Capacity:
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 ||
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
