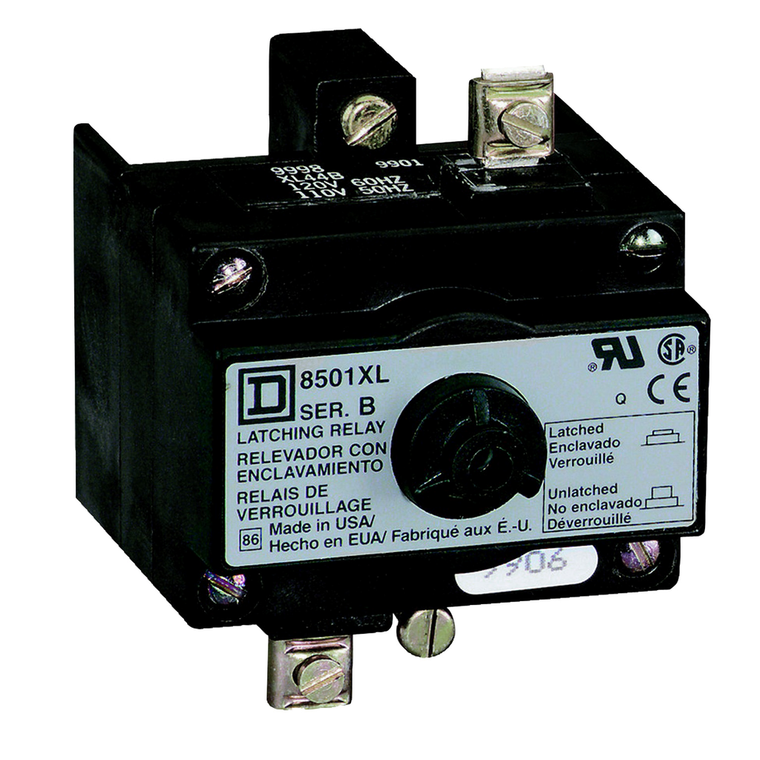

Schneider Electric 8501XLV02 Relay Latch Attachment 120Vac Nema
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X NEMA machine tool relay has a variety of attachments to improve its flexibility. This mechanical latch attachment holds all contacts in the relay switched even after the removal of power from the latching coil. This latch attachment provides sequence memory in the event of power loss. This attachment is often used for press control, process control and punch press applications. Latch attachment has a continuously rated 110/120 VAC 50/60 Hz replaceable unlatching coil, which means no coil clearing contacts are required. This latch attachment is UL listed and CSA certified.
- Inrush Power In Va:
- 148-148 VA 60 Hz || 143-143 VA 50 Hz
- Net Weight:
- 0.3425 kg
- Sustainable Offer Status:
- Green Premium product
- Awg Gauge:
- AWG 18...AWG 12 copper
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- screw clamp terminals
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP1310013EN
- Mercury Free:
- Yes
- Tightening Torque:
- control circuit 1.02-1.36 N.m screw terminals
- Height:
- 73 mm
- Width:
- 57 mm
- Depth:
- 75 mm
- [Uc] Control Circuit Voltage:
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Hold-In Power Consumption In Va:
- 23-23 VA 60 Hz || 25-25 VA 50 Hz
- Relay Type:
- control relay
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- ENVEOLI1310013
- Product Or Component Type:
- latching device
- Product Certifications:
- UL recognized E78403 CCN NKCR2 || CE || CSA LR60905 class 3211 02
- Range Of Product:
- 8501X
- Control Circuit Voltage Limits:
- operational 0.85...1.1 Uc AC 50/60 Hz
- Warranty:
- 18 months
- Catalog:
- View
- Datasheet:
- View
