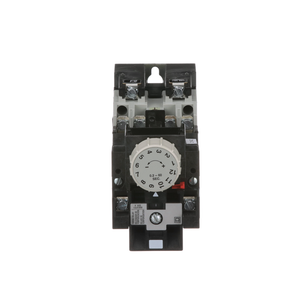

Schneider Electric 8501XO20V02 Relay 600Vac 10Amp Nema +Options

(No reviews yet) Write a Review
SKU:
8501XO20V02
UPC:
785901536963
Condition:
New
Control Circuit Voltage Limits:
operational 0.85...1.1 Uc AC 50/60 Hz
Product Certifications:
CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
Warranty:
18 months
Electrical Connection:
screw clamp terminals
Inrush Power In Va:
148-148 VA 60 Hz || 143-143 VA 50 Hz
Contacts Type And Composition:
2 NO 2 standard contact cartridges
Rated Breaking Capacity:
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 ||
Operating Time:
15 ms - pick-up || 16 ms - drop-out
Mounting Support:
panel
Hold-In Power Consumption In Va:
23-23 VA 60 Hz || 25-25 VA 50 Hz
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
ENVEOLI1310013
[Uc] Control Circuit Voltage:
110 V AC 50 Hz || 120 V AC 60 Hz
China Rohs Regulation:
X
Tightening Torque:
control circuit 1.02-1.36 N.m screw terminals
Environmental Disclosure:
ENVPEP1310013EN
Product Or Component Type:
relay
Width:
2.23 in
[Icm] Rated Short-Circuit Making Capacity:
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 ||
Depth:
3.95 in
Range Of Product:
8501X
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sustainable Offer Status:
Green Premium product
Height:
3.5 in
Line Rated Current:
10 A AC || 5 A DC
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-40-160 °F
Relay Type:
control
Awg Gauge:
AWG 18...AWG 12 copper
Catalog:
View
Datasheet:
View
$144.00

Description

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has two 8501XC1 contact cartridges. This relay has two normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The two plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified. Relay is UL listed and CSA certified.
