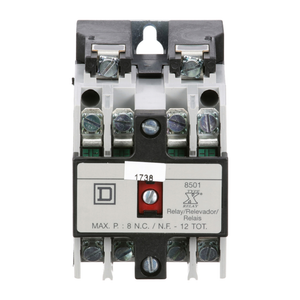

Schneider Electric 8501XO20XTE1V02 Relay 600Vac 10Amp Nema +Options

(No reviews yet) Write a Review
SKU:
8501XO20XTE1V02
UPC:
7.85902E+11
Condition:
New
Awg Gauge:
AWG 18...AWG 12 copper
Warranty:
18 months
Relay Type:
timing
Operating Time:
15 ms - pick-up || 16 ms - drop-out
Electrical Connection:
screw clamp terminals
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Poles Description:
2P
Contacts Type And Composition:
2 NO 2 standard contact cartridges
Mounting Support:
panel
Depth:
6.55 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Product Or Component Type:
relay
Width:
2.23 in
[Icm] Rated Short-Circuit Making Capacity:
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 ||
Height:
3.5 in
Line Rated Current:
10 A AC || 5 A DC
Maximum Switching Voltage:
600 V AC
Environmental Disclosure:
ENVPEP1310013EN
China Rohs Regulation:
X
Time Delay Range:
0.2...60 s
Range Of Product:
8501X
Product Certifications:
CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
[Uc] Control Circuit Voltage:
110 V AC 50 Hz || 120 V AC 60 Hz
Tightening Torque:
control circuit 1.02-1.36 N.m screw terminal
Circularity Profile:
ENVEOLI1310013
Time Delay Type:
on-delay
Inrush Power In Va:
148-148 VA 60 Hz || 143-143 VA 50 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rated Breaking Capacity:
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 ||
Control Circuit Voltage Limits:
operational 0.85...1.1 Uc AC 50/60 Hz
Mercury Free:
Yes
Ambient Air Temperature For Operation:
-40-160 °F
Hold-In Power Consumption In Va:
23-23 VA 60 Hz || 25-25 VA 50 Hz
  • Schneider Electric 8501XO20XTE1V02 Relay 600Vac 10Amp Nema +Options
  • Schneider Electric 8501XO20XTE1V02 Relay 600Vac 10Amp Nema +Options
$480.00

Description

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with a one minute on delay timing attachment on a standard relay. No special relay is required. The timer attachment can be converted from on delay to off delay. The timer attachment has two 8501XC1 contact cartridges. This relay is supplied with two 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The two plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. 18 to 12 AWG copper wire can be used with this relay. Relay has a 110/120 VAC 50/60 VAC replaceable coil. Relay is UL listed and CSA certified.
