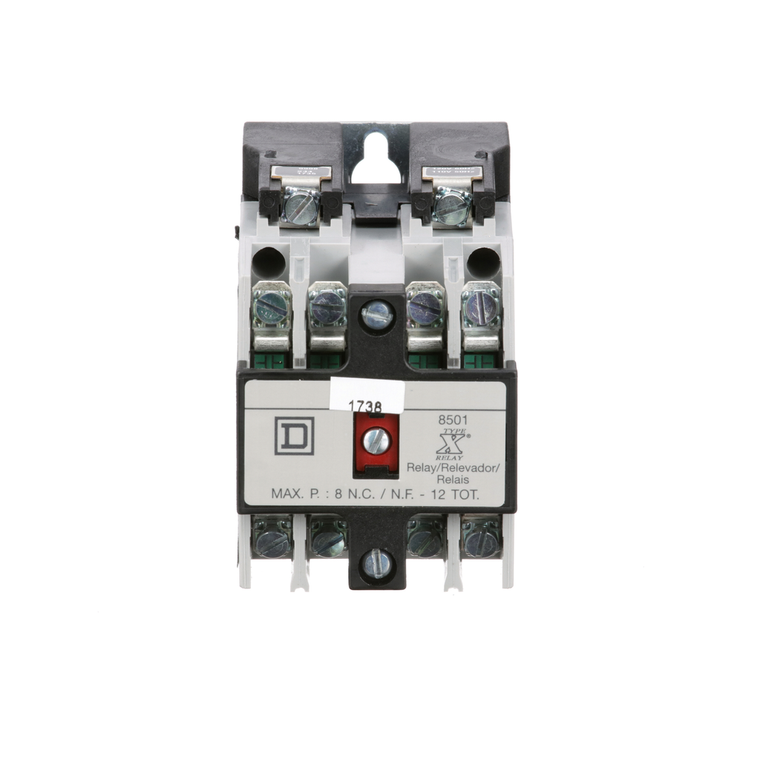

Schneider Electric 8501XO40V02 Relay 600Vac 10Amp Nema +Options
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has four 8501XC1 contact cartridges. This relay has four normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Tightening Torque:
- control circuit 1.02-1.36 N.m screw terminals
- Hold-In Power Consumption In Va:
- 23-23 VA 60 Hz || 25-25 VA 50 Hz
- Width:
- 2.23 in
- Circularity Profile:
- ENVEOLI1310013
- Environmental Disclosure:
- ENVPEP1310013EN
- Product Certifications:
- UL listed file E78403 CCN NKCR || CSA LR60905 class 3211 03
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Control Circuit Voltage Limits:
- operational 0.85...1.1 Uc AC 50/60 Hz
- Mounting Support:
- panel
- Warranty:
- 18 months
- Line Rated Current:
- 10 A AC || 5 A DC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- relay
- Ambient Air Temperature For Operation:
- -40-160 °F
- Awg Gauge:
- AWG 18...AWG 12 copper
- Inrush Power In Va:
- 148-148 VA 60 Hz || 143-143 VA 50 Hz
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Contacts Type And Composition:
- 4 NO 4 standard contact cartridges
- Height:
- 3.5 in
- Mercury Free:
- Yes
- Depth:
- 3.95 in
- Operating Time:
- 15 ms - pick-up || 16 ms - drop-out
- Range Of Product:
- 8501X
- Electrical Connection:
- screw clamp terminals
- [Uc] Control Circuit Voltage:
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Relay Type:
- control
- Rated Breaking Capacity:
- 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 ||
- [Icm] Rated Short-Circuit Making Capacity:
- 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 ||
- China Rohs Regulation:
- X
