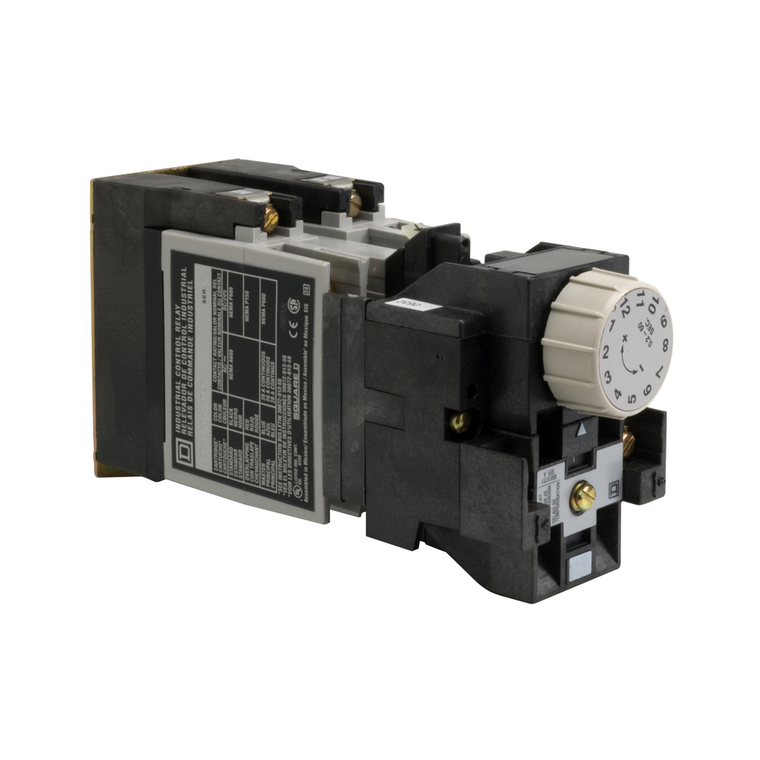

Schneider Electric 8501XO40XTD1V02 Relay 600Vac 10Amp Nema +Options
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- 8501X
- Electrical Connection:
- screw clamp terminals
- Environmental Disclosure:
- ENVPEP1310013EN
- Rated Breaking Capacity:
- 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 ||
- [Icm] Rated Short-Circuit Making Capacity:
- 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 ||
- Control Circuit Voltage Limits:
- operational 0.85...1.1 Uc AC 50/60 Hz
- Circularity Profile:
- ENVEOLI1310013
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Product Or Component Type:
- relay
- Product Certifications:
- CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
- Relay Type:
- timing
- Mercury Free:
- Yes
- Operating Time:
- 15 ms - pick-up || 16 ms - drop-out
- Awg Gauge:
- AWG 18...AWG 12 copper
- Ambient Air Temperature For Operation:
- -40-160 °F
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Height:
- 3.5 in
- Maximum Switching Voltage:
- 600 V AC
- Line Rated Current:
- 10 A AC || 5 A DC
- Hold-In Power Consumption In Va:
- 23-23 VA 60 Hz || 25-25 VA 50 Hz
- Width:
- 2.23 in
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Poles Description:
- 4P
- Time Delay Range:
- 0.2...60 s
- Contacts Type And Composition:
- 4 NO 4 standard contact cartridges
- Time Delay Type:
- off-delay
- Inrush Power In Va:
- 148-148 VA 60 Hz || 143-143 VA 50 Hz
- Tightening Torque:
- control circuit 1.02-1.36 N.m screw terminal
- Mounting Support:
- panel
- [Uc] Control Circuit Voltage:
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Depth:
- 6.55 in
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
