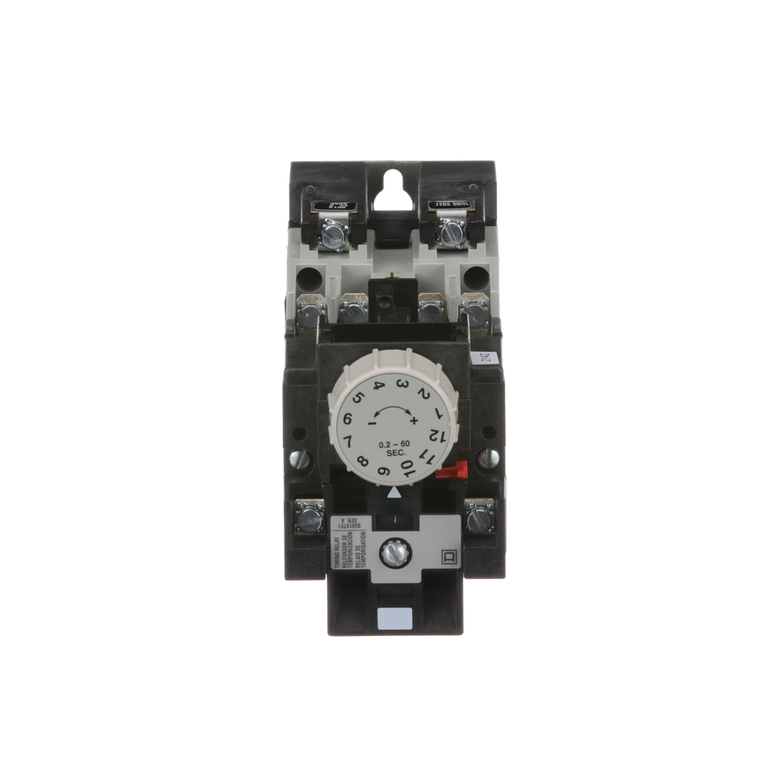

Schneider Electric 8501XO40XTE1V02 Relay 600Vac 10Amp Nema +Options
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with a one minute on delay timing attachment on a standard relay. No special relay is required. The timer attachment can be converted from on delay to off delay. The timer attachment has two 8501XC1 contact cartridges. This relay is supplied with four 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. 18 to 12 AWG copper wire can be used with this relay. Relay has a 110/120 VAC 50/60 VAC replaceable coil. Relay is UL listed and CSA certified.
- Range Of Product:
- 8501X
- Control Circuit Voltage Limits:
- operational 0.85...1.1 Uc AC 50/60 Hz
- Warranty:
- 18 months
- Product Certifications:
- CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
- Rohs Exemption Information:
- Yes
- Hold-In Power Consumption In Va:
- 23-23 VA 60 Hz || 25-25 VA 50 Hz
- Contacts Type And Composition:
- 4 NO 4 standard contact cartridges
- Sustainable Offer Status:
- Green Premium product
- Height:
- 3.5 in
- Product Or Component Type:
- relay
- Awg Gauge:
- AWG 18...AWG 12 copper
- Width:
- 2.23 in
- Relay Type:
- timing
- Circularity Profile:
- ENVEOLI1310013
- Poles Description:
- 4P
- Depth:
- 6.55 in
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Support:
- panel
- Inrush Power In Va:
- 148-148 VA 60 Hz || 143-143 VA 50 Hz
- Tightening Torque:
- control circuit 1.02-1.36 N.m screw terminal
- Rated Breaking Capacity:
- 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 ||
- [Uc] Control Circuit Voltage:
- 110 V AC 50 Hz || 120 V AC 60 Hz
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Time Delay Type:
- on-delay
- Operating Time:
- 15 ms - pick-up || 16 ms - drop-out
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP1310013EN
- Maximum Switching Voltage:
- 600 V AC
- Time Delay Range:
- 0.2...60 s
- Line Rated Current:
- 10 A AC || 5 A DC
- Electrical Connection:
- screw clamp terminals
- Ambient Air Temperature For Operation:
- -40-160 °F
- China Rohs Regulation:
- X
- [Icm] Rated Short-Circuit Making Capacity:
- 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 ||
- Catalog:
- View
- Datasheet:
- View
