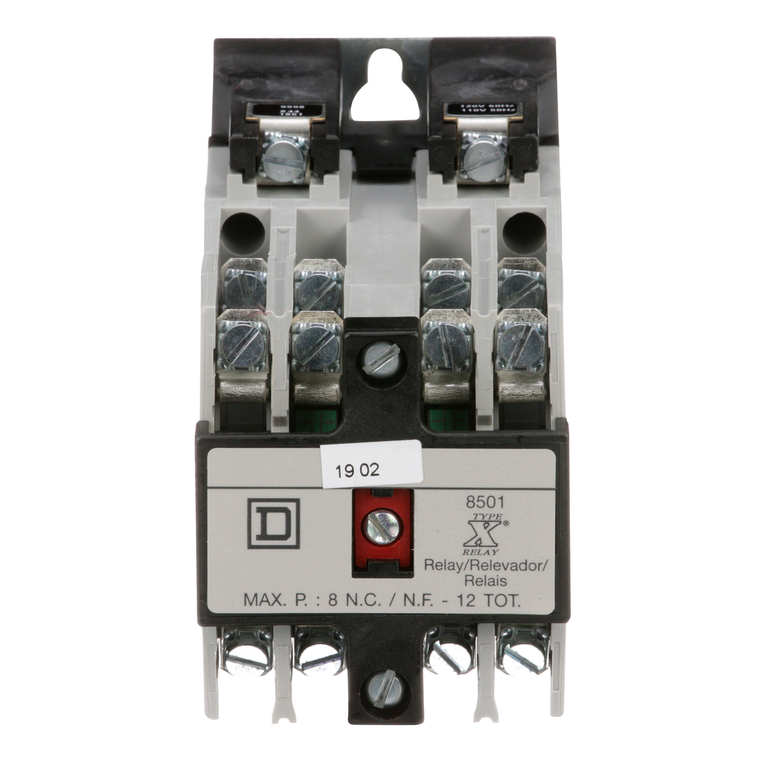

Schneider Electric 8501XO60V02 Relay 600Vac 10Amp Nema +Options
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has six 8501XC1 contact cartridges. This relay has six normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The six plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.
- Product Or Component Type:
- relay
- Awg Gauge:
- AWG 18...AWG 12 copper
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
- Height:
- 3.5 in
- Rohs Exemption Information:
- Yes
- Range Of Product:
- 8501X
- Warranty:
- 18 months
- Rated Breaking Capacity:
- 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 ||
- China Rohs Regulation:
- X
- Operating Time:
- 15 ms - pick-up || 16 ms - drop-out
- Mounting Support:
- panel
- Tightening Torque:
- control circuit 1.02-1.36 N.m screw terminals
- [Uc] Control Circuit Voltage:
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Electrical Connection:
- screw clamp terminals
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Depth:
- 5.16 in
- [Icm] Rated Short-Circuit Making Capacity:
- 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 ||
- Circularity Profile:
- ENVEOLI1310013
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Relay Type:
- control
- Hold-In Power Consumption In Va:
- 23-23 VA 60 Hz || 25-25 VA 50 Hz
- Width:
- 2.23 in
- Environmental Disclosure:
- ENVPEP1310013EN
- Line Rated Current:
- 10 A AC || 5 A DC
- Contacts Type And Composition:
- 6 NO 6 standard contact cartridges
- Control Circuit Voltage Limits:
- operational 0.85...1.1 Uc AC 50/60 Hz
- Mercury Free:
- Yes
- Inrush Power In Va:
- 148-148 VA 60 Hz || 143-143 VA 50 Hz
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -40-160 °F
