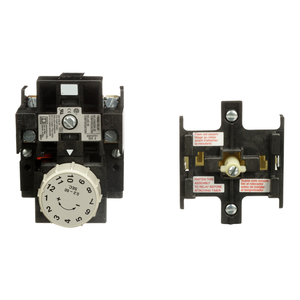

Schneider Electric 8501XTD1 Relay Pneumatic Timer Attachment Nema
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This pneumatic timer attachment can be added to a standard 4 pole relay. This timer attachment comes as standard in the off delay mode but can be converted to on delay. The timer attachment comes with one normally closed and one normally open timed contact. The contacts are the standard 8501XC1 relay cartridge. The timing range of this timer attachment is from 0.2 to 60 seconds. This timer attachment is UL listed and CSA certified. The timing range of this timer attachment is from 0.2 to 60 seconds. This timer has screw clamp terminals. This timer attachment is UL listed and CSA certified.
- Environmental Disclosure:
- ENVPEP1310013EN
- Tightening Torque:
- control circuit 1.02-1.36 N.m screw terminals
- Electrical Connection:
- screw clamp terminals
- Relay Type:
- control relay
- Product Or Component Type:
- timing relay
- Time Range:
- 0.2...60 s
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI1310013
- Awg Gauge:
- AWG 18...AWG 12 copper
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mercury Free:
- Yes
- Product Certifications:
- UL recognized E78403 CCN NKCR2 || CE || CSA LR60905 class 3211 02
- Sustainable Offer Status:
- Green Premium product
- Contacts Type And Composition:
- 1 NO/1 NC
- Range Of Product:
- 8501X
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Time Delay Type:
- off-delay
