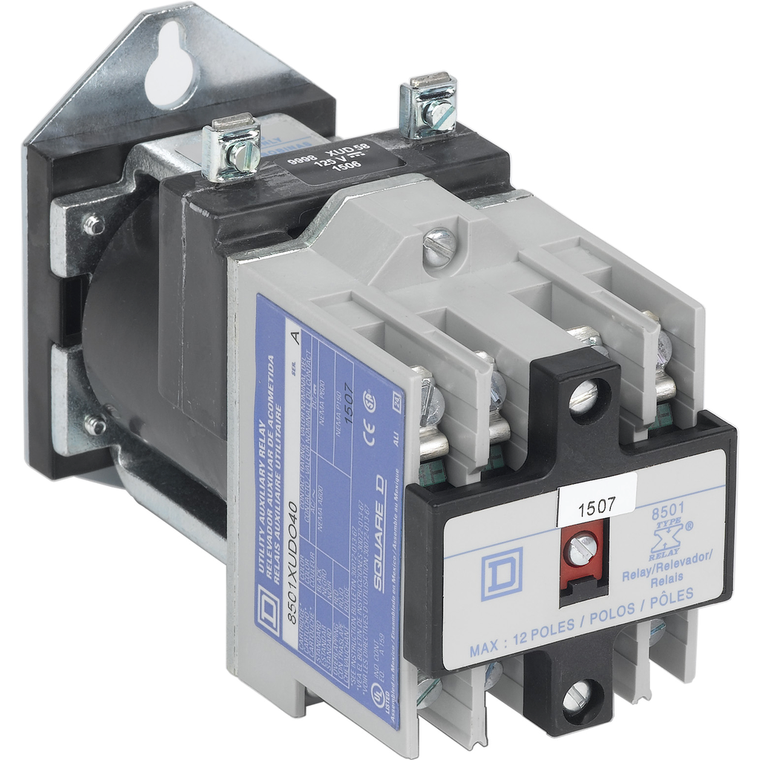

Schneider Electric 8501XUDO40V63 Relay 250Vdc 5Amp Nema +Options
Schneider Electric
Schneider Electric 8501XUDO40V53 Relay 250Vdc 5Amp Nema +Options
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
- Maximum Switching Voltage:
- 250 V DC
- Mounting Support:
- panel
- Depth:
- 5.17 in
- Product Or Component Type:
- relay
- Operating Time:
- 37 ms - pick-up || 21 ms - drop-out
- Poles Description:
- 4P
- Rohs Exemption Information:
- Yes
- Height:
- 3.56 in
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- screw clamp terminals
- [Uc] Control Circuit Voltage:
- 24 V DC
- Ambient Air Temperature For Operation:
- -40-160 °F
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Width:
- 2.23 in
- Product Certifications:
- UL Listed || CE || CSA
- Range Of Product:
- 8501X
- Contacts Type And Composition:
- 4 NO 4 standard contact cartridges
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Environmental Disclosure:
- ENVPEP1310013EN
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Circularity Profile:
- ENVEOLI1310013
- Line Rated Current:
- 10 A AC || 5 A DC
- Relay Type:
- utility
- Catalog:
- View
- Datasheet:
- View
