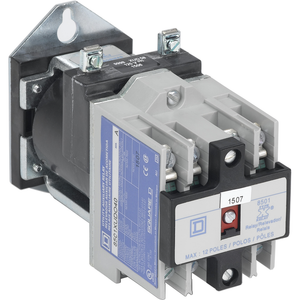

Schneider Electric 8501XUDO40V63 Relay 250Vdc 5Amp Nema +Options

Schneider Electric 8501XUDO40V63 Relay 250Vdc 5Amp Nema +Options

Schneider Electric
SKU:
8501XUDO40V63
|
UPC:
785901743316
Availability:
Contact us to confirm availability and lead times.
$390.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay is ideal for utility plant applications where reliable performance and a pure DC power plant are required. In addition to the 8501XDO relay features, this relay can have up to 12 NO or NC contacts. This relay has contacts with a 5 ampere resistive current rating at 600 VDC. The contacts also have an A600 and P600 inductive contact rating. This relay is supplied with four 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. !8 to 12 AWG copper wire can be used with this relay. Relay has a 125 VDC replaceable coil. This coil is capable of handling 140 VDC continuously. Relay is UL listed and CSA certified.
Additional Information
Circularity Profile:
ENVEOLI1310013
Range Of Product:
8501X
Electrical Connection:
screw clamp terminals
Contacts Type And Composition:
4 NO 4 standard contact cartridges
Sustainable Offer Status:
Green Premium product
Line Rated Current:
10 A AC || 5 A DC
Width:
2.23 in
Relay Type:
utility
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Product Certifications:
UL Listed || CE || CSA
Operating Time:
37 ms - pick-up || 21 ms - drop-out
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Poles Description:
4P
Environmental Disclosure:
ENVPEP1310013EN
Maximum Switching Voltage:
250 V DC
Ambient Air Temperature For Operation:
-40-160 °F
Mounting Support:
panel
Mercury Free:
Yes
Depth:
5.17 in
Product Or Component Type:
relay
[Uc] Control Circuit Voltage:
125 V DC
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Height:
3.56 in
China Rohs Regulation:
X
