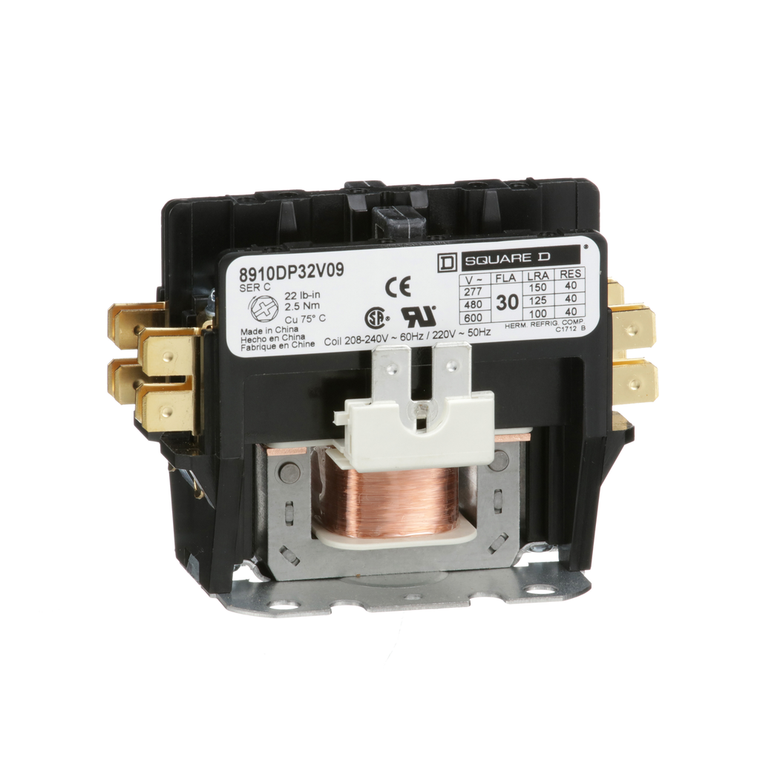

Name: Schneider Electric 8910DP32V09 Contactor 600Vac 30Amp Dp +Options
Brand: Schneider Electric
SKU: 8910DP32V09
Price: 70.88 USD
Availability: InStock

Schneider Electric 8910DP32V09 Contactor 600Vac 30Amp Dp +Options

(No reviews yet) Write a Review

SKU:

8910DP32V09

UPC:

7.85901E+11

Condition:

New

Product Or Component Type:

Definite Purpose Contactor

Warranty:

18 months

Locked Rotor Rated Current:

125 A 460 V AC || 100 A 575 V AC || 150 A 277 V AC

Electrical Connection:

binder head || quick connect terminals

Poles Description:

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive:

Compliant with Exemptions

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Line Rated Current:

30 A

Maximum Horse Power Rating:

2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase

Phase:

1 phase

Product Certifications:

UL Recognized || CSA

Mercury Free:

Yes

[Ue] Rated Operational Voltage:

600 V AC

Pole Contact Composition:

2 NO

Range Of Product:

[Uc] Control Circuit Voltage:

208...240 V AC 60 Hz || 220 V AC 50 Hz

Rohs Exemption Information:

Yes

Catalog:

View

Datasheet:

View

Description

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
