Schneider Electric 8910DPA34V02 Contactor 600Vac 30Amp Dpa +Options

Schneider Electric 8910DPA34V02 Contactor 600Vac 30Amp Dpa +Options

Schneider Electric
SKU:
8910DPA34V02
|
UPC:
785901073505
Availability:
Contact us to confirm availability and lead times.
$127.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

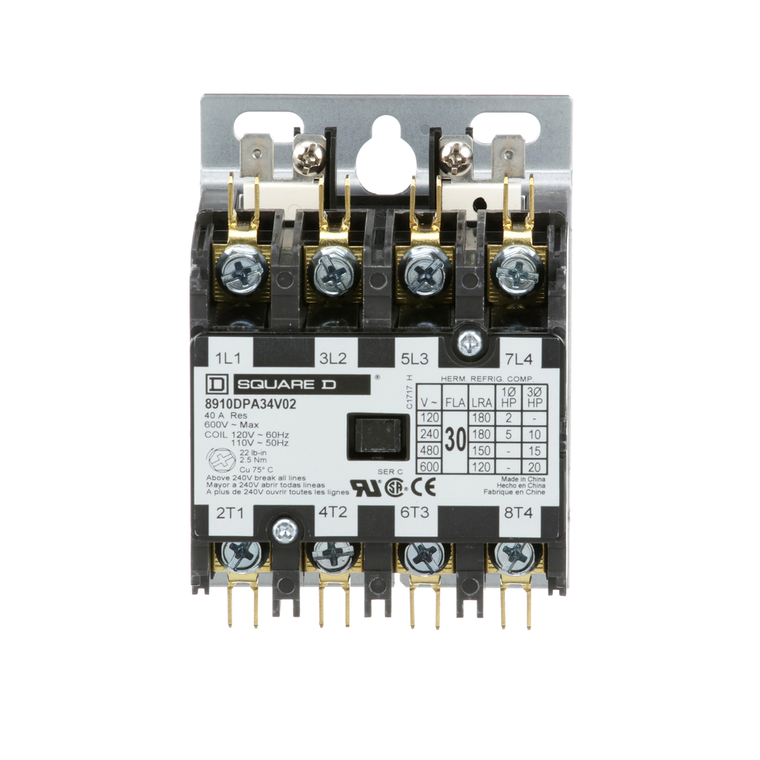

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.
Additional Information
Range Of Product:
DPA
Depth:
3.00 in || 76 mm
Net Weight:
.59 kg || 1.3 lb(US)
Electrical Connection:
binder head || quick connect terminals
Mercury Free:
Yes
Warranty:
18 months
[Uc] Control Circuit Voltage:
120 V AC 60 Hz || 110 V AC 50 Hz
Width:
2.75 in || 69.80 mm
Maximum Horse Power Rating:
2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase || 10-10 hp 230 V AC, 3 phase || 15-15 hp 460 V AC, 3 phase || 20-20 hp 575 V AC, 3 phase
Product Certifications:
UL Recognized || CSA
Phase:
3 phase
Line Rated Current:
30 A
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pole Contact Composition:
4 NO
Poles Description:
4P
Product Or Component Type:
Definite Purpose Contactor
[Ue] Rated Operational Voltage:
600 V AC
Height:
3.77 in || 95.80 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Locked Rotor Rated Current:
150 A 460 V AC || 120 A 575 V AC || 180 A 277 V AC
