Schneider Electric 8910DPA42V14 Contactor 600Vac 40Amp Dpa +Options
Schneider Electric
$101.75
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

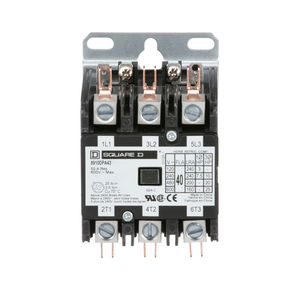

Schneider Electric 8910DPA42V14 Contactor 600Vac 40Amp Dpa +Options
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
- Product Or Component Type:
- Definite Purpose Contactor
- Eu Rohs Directive:
- Compliant with Exemptions
- Poles Description:
- 2P
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Line Rated Current:
- 40 A
- Pole Contact Composition:
- 2 NO
- [Ue] Rated Operational Voltage:
- 600 V AC
- Phase:
- 1 phase
- Product Certifications:
- UL Recognized || CSA
- Range Of Product:
- DPA
- Maximum Horse Power Rating:
- 3-3 hp 115 V AC, 1 phase || 7.5-7.5 hp 230 V AC, 1 phase
- Electrical Connection:
- quick connect terminals || box lugs
- Locked Rotor Rated Current:
- 240 A 277 V AC || 200 A 460 V AC || 160 A 575 V AC
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Catalog:
- View
- Datasheet:
- View
