Schneider Electric 8910DPA43V02 Contactor 600Vac 40Amp Dpa +Options

Schneider Electric 8910DPA43V02 Contactor 600Vac 40Amp Dpa +Options

Schneider Electric
SKU:
8910DPA43V02
|
UPC:
785901073444
Availability:
Contact us to confirm availability and lead times.
$113.25
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

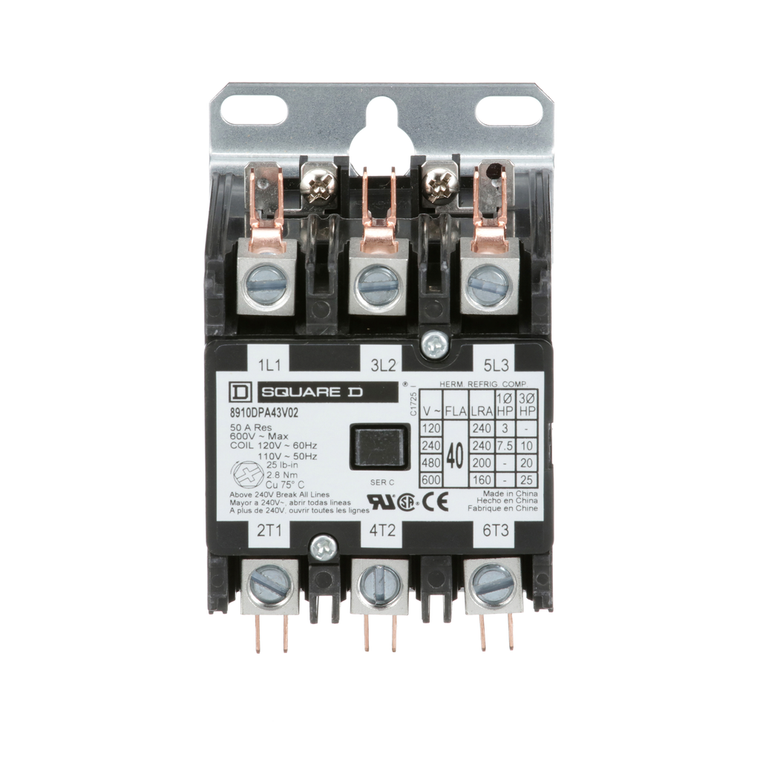

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Additional Information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
2.37 in || 60.2 mm
Pole Contact Composition:
3 NO
Product Or Component Type:
Definite Purpose Contactor
Height:
2.31 in || 58.70 mm
Range Of Product:
DPA
[Uc] Control Circuit Voltage:
120 V AC 60 Hz || 110 V AC 50 Hz
Product Certifications:
UL Recognized || CSA
Locked Rotor Rated Current:
240 A 277 V AC || 200 A 460 V AC || 160 A 575 V AC
Electrical Connection:
quick connect terminals || box lugs
Rohs Exemption Information:
Yes
Net Weight:
.45 kg || .99 lb(US)
Line Rated Current:
40 A
Poles Description:
3P
Eu Rohs Directive:
Compliant with Exemptions
Warranty:
18 months
[Ue] Rated Operational Voltage:
600 V AC
Depth:
2.90 in || 76 mm
Maximum Horse Power Rating:
3-3 hp 115 V AC, 1 phase || 7.5-7.5 hp 230 V AC, 1 phase || 10-10 hp 230 V AC, 3 phase || 20-20 hp 460 V AC, 3 phase || 25-25 hp 575 V AC, 3 phase
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Phase:
3 phase
Mercury Free:
Yes
