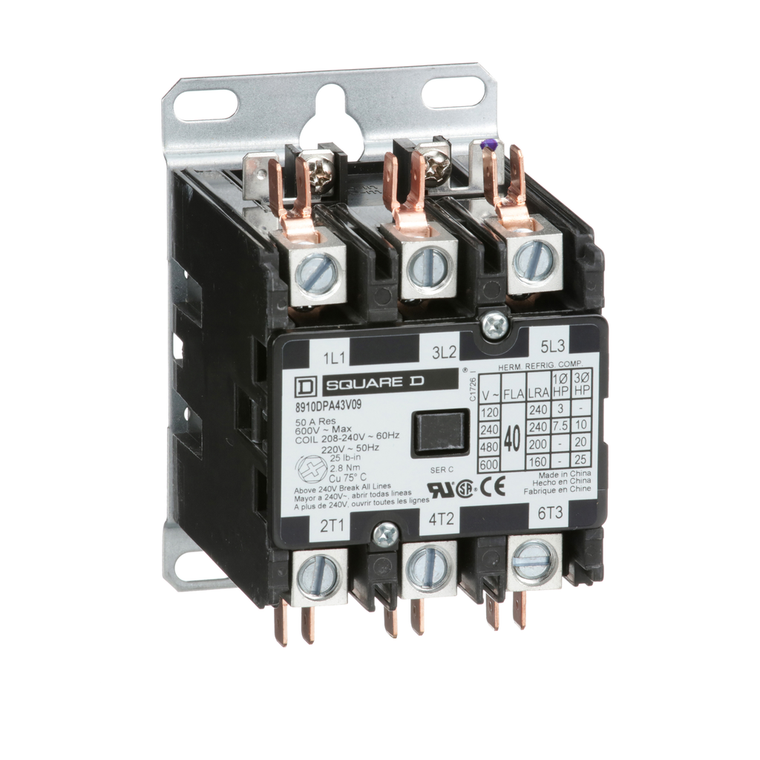

Name: Schneider Electric 8910DPA43V09 Contactor 600Vac 40Amp Dpa +Options
Brand: Schneider Electric
SKU: 8910DPA43V09
Price: 113.25 USD
Availability: InStock

Schneider Electric 8910DPA43V09 Contactor 600Vac 40Amp Dpa +Options

(No reviews yet) Write a Review

SKU:

8910DPA43V09

UPC:

785901073437

Condition:

New

Product Or Component Type:

Definite Purpose Contactor

Rohs Exemption Information:

Yes

Pole Contact Composition:

3 NO

[Uc] Control Circuit Voltage:

208...240 V AC 60 Hz || 220 V AC 50 Hz

Mercury Free:

Yes

Line Rated Current:

40 A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Warranty:

18 months

Locked Rotor Rated Current:

240 A 277 V AC || 200 A 460 V AC || 160 A 575 V AC

Maximum Horse Power Rating:

3-3 hp 115 V AC, 1 phase || 7.5-7.5 hp 230 V AC, 1 phase || 10-10 hp 230 V AC, 3 phase || 20-20 hp 460 V AC, 3 phase || 25-25 hp 575 V AC, 3 phase

Range Of Product:

DPA

Electrical Connection:

quick connect terminals || box lugs

Poles Description:

Phase:

3 phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive:

Compliant with Exemptions

Product Certifications:

UL Recognized || CSA

[Ue] Rated Operational Voltage:

600 V AC

Catalog:

View

Datasheet:

View

Description

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
