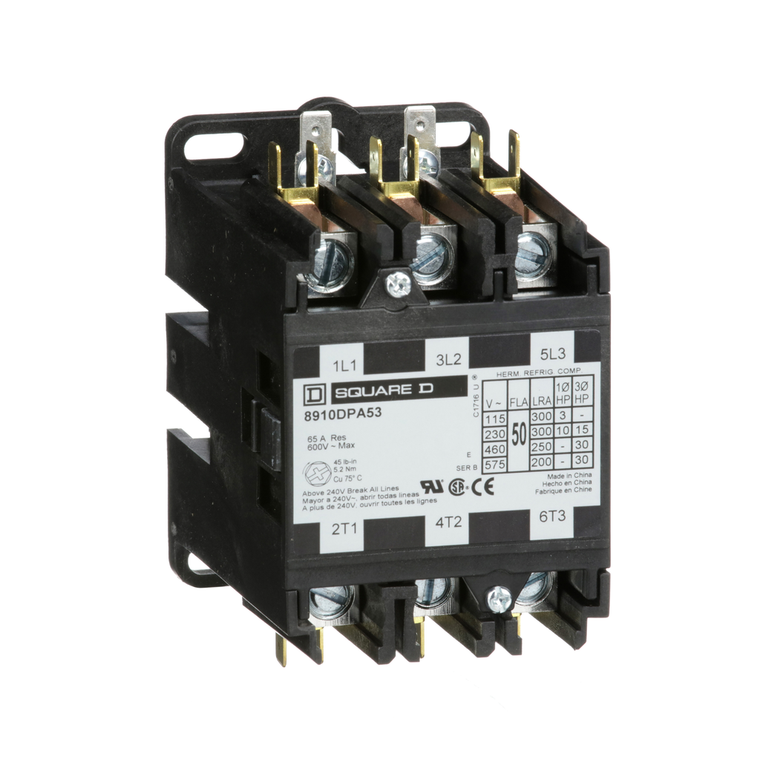

Schneider Electric 8910DPA53V14 Contactor 600Vac 50Amp Dpa +Options
Schneider Electric
$224.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8910DPA53V14 Contactor 600Vac 50Amp Dpa +Options
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 50 ampere and a resistive rating of 65 amperes. It also has a 3 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 15 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
- Poles Description:
- 3P
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- quick connect terminals || box lugs
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pole Contact Composition:
- 3 NO
- Eu Rohs Directive:
- Compliant with Exemptions
- Range Of Product:
- DPA
- [Ue] Rated Operational Voltage:
- 600 V AC
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Product Or Component Type:
- Definite Purpose Contactor
- Product Certifications:
- UL Recognized || CSA
- Maximum Horse Power Rating:
- 3-3 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 1 phase || 15-15 hp 230 V AC, 3 phase || 30-30 hp 460 V AC, 3 phase || 30-30 hp 575 V AC, 3 phase
- Line Rated Current:
- 50 A
- Phase:
- 3 phase
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Locked Rotor Rated Current:
- 300 A 277 V AC || 250 A 460 V AC || 200 A 575 V AC
