Schneider Electric 8910DPA62V14 Contactor 600Vac 60Amp Dpa +Options
Schneider Electric
$238.25
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

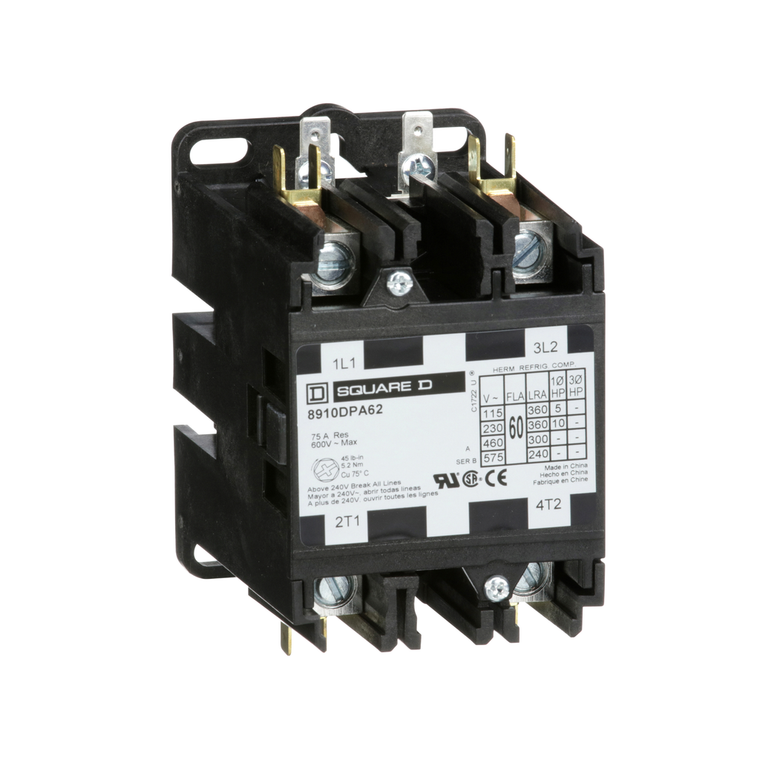

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
- Product Certifications:
- UL Recognized || CSA
- Maximum Horse Power Rating:
- 5-5 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 1 phase
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range Of Product:
- DPA
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Pole Contact Composition:
- 2 NO
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Phase:
- 1 phase
- Product Or Component Type:
- Definite Purpose Contactor
- Poles Description:
- 2P
- Line Rated Current:
- 60 A
- Mercury Free:
- Yes
- Electrical Connection:
- quick connect terminals || box lugs
- [Ue] Rated Operational Voltage:
- 600 V AC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Locked Rotor Rated Current:
- 360 A 277 V AC || 300 A 460 V AC || 240 A 575 V AC
- Eu Rohs Directive:
- Compliant with Exemptions
