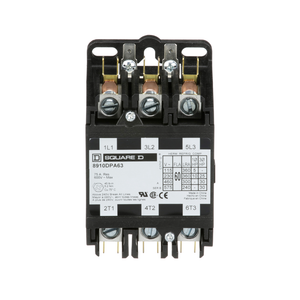

Schneider Electric 8910DPA63V09 Contactor 600Vac 60Amp Dpa +Options
Schneider Electric
$248.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8910DPA63V09 Contactor 600Vac 60Amp Dpa +Options
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
- Electrical Connection:
- box lugs || quick connect terminals
- Poles Description:
- 3P
- [Uc] Control Circuit Voltage:
- 208...240 V AC 60 Hz || 220 V AC 50 Hz
- Line Rated Current:
- 60 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Rohs Exemption Information:
- Yes
- Range Of Product:
- DPA
- Product Certifications:
- UL Recognized || CSA
- Mercury Free:
- Yes
- Product Or Component Type:
- Definite Purpose Contactor
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Maximum Horse Power Rating:
- 5-5 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 1 phase || 30-30 hp 460 V AC, 3 phase || 30-30 hp 575 V AC, 3 phase || 25-25 hp 230 V AC, 3 phase
- Locked Rotor Rated Current:
- 360 A 277 V AC || 300 A 460 V AC || 240 A 575 V AC
- Warranty:
- 18 months
- Pole Contact Composition:
- 3 NO
- [Ue] Rated Operational Voltage:
- 600 V AC
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Phase:
- 3 phase
- Catalog:
- View
- Datasheet:
- View
