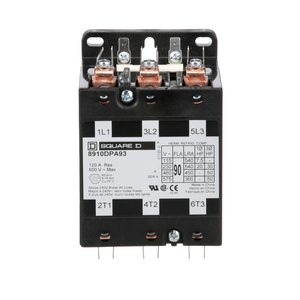

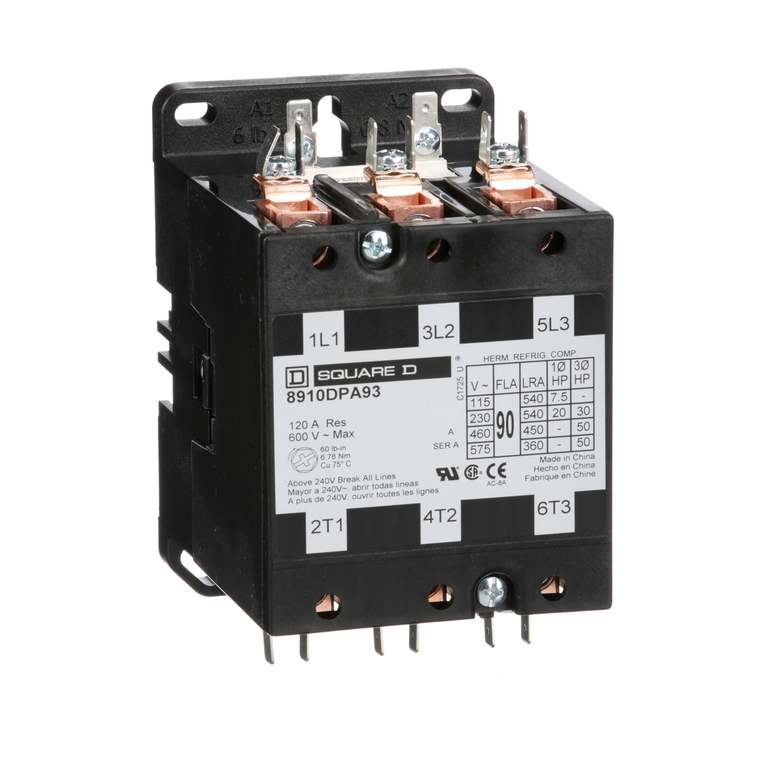

Schneider Electric 8910DPA93V09 Contactor 600Vac 90Amp Dpa +Options

Schneider Electric 8910DPA93V09 Contactor 600Vac 90Amp Dpa +Options

Schneider Electric
SKU:
8910DPA93V09
|
UPC:
7.85901E+11
Availability:
Contact us to confirm availability and lead times.
$400.38
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 90 ampere and a resistive rating of 120 amperes. It also has a 7.5 HP at 115 VAC single phase, 20 HP at 230 VAC single phase and 30 HP at 230 VAC three phase, 50 HP at 460 VAC three phase and 50 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 5.20 inches by 3.39 inches and 4.76 tall. These contactors are UL component recognized and CSA certified.
Additional Information
Eu Rohs Directive:
Compliant with Exemptions
Product Certifications:
UL Recognized || CSA
Range Of Product:
DPA
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mercury Free:
Yes
Maximum Horse Power Rating:
7.5-7.5 hp 115 V AC, 1 phase || 20-20 hp 230 V AC, 1 phase || 30-30 hp 230 V AC, 3 phase || 50-50 hp 460 V AC, 3 phase || 50-50 hp 575 V AC, 3 phase
Electrical Connection:
quick connect terminals || box lugs
Product Or Component Type:
Definite Purpose Contactor
Line Rated Current:
90 A
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Uc] Control Circuit Voltage:
208...240 V AC 60 Hz || 220 V AC 50 Hz
Poles Description:
3P
Phase:
3 phase
Locked Rotor Rated Current:
540 A 277 V AC || 450 A 460 V AC || 360 A 575 V AC
Pole Contact Composition:
3 NO
[Ue] Rated Operational Voltage:
600 V AC
Rohs Exemption Information:
Yes
