Schneider Electric

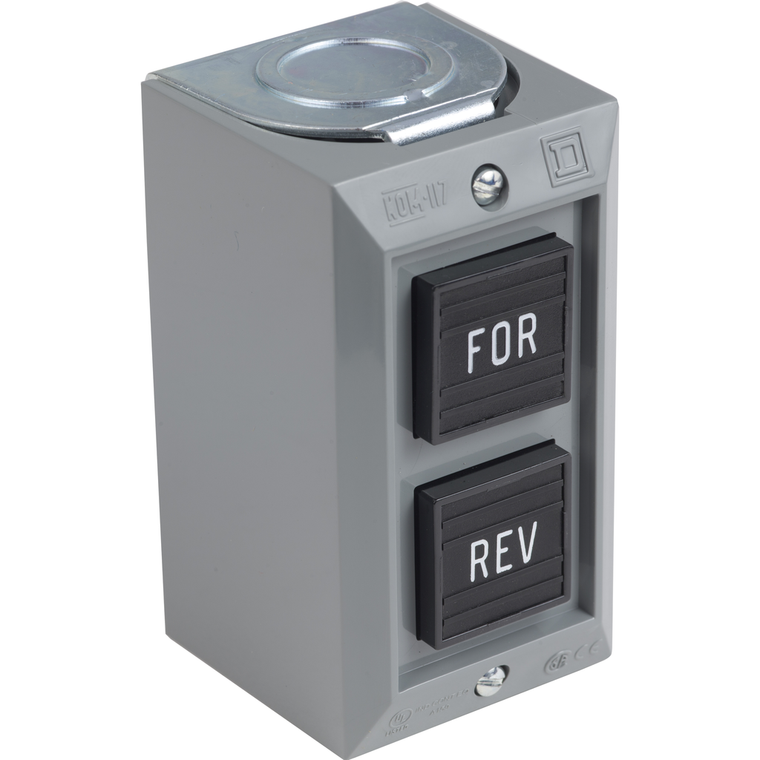

Schneider Electric 9001BG206 Control Station 600Vac 5A T-B

SKU:

9001BG206

UPC:

785901794172

MPN:

Condition:

New

Environmental Characteristic:

standard environment

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP1304002

China Rohs Regulation:

X

Range Of Product:

Harmony 9001B

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Ie] Rated Operational Current:

5 A 600 V

Toxic Heavy Metal Free:

Yes

Rohs Exemption Information:

Yes

Device Short Name:

9001BG

Warranty:

18 months

Control Station Composition:

2 push-buttons FORWARD-REVERSE

Contacts Type And Composition:

2 NO

Connections - Terminals:

screw clamp terminal

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Product Certifications:

UL listed file E42259 CCN NKCR || CSA LR25490 class 3211 03 || CE

Type Of Installation:

indoor

Reach Free Of Svhc:

Yes

Nema Degree Of Protection:

NEMA 1

Sustainable Offer Status:

Green Premium product

Circularity Profile:

ENVEOLI1304002EN

Device Mounting:

surface

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Or Component Type:

complete control station

Datasheet:

View
