Schneider Electric 9001BG208 Control Station 600Vac 5A T-B

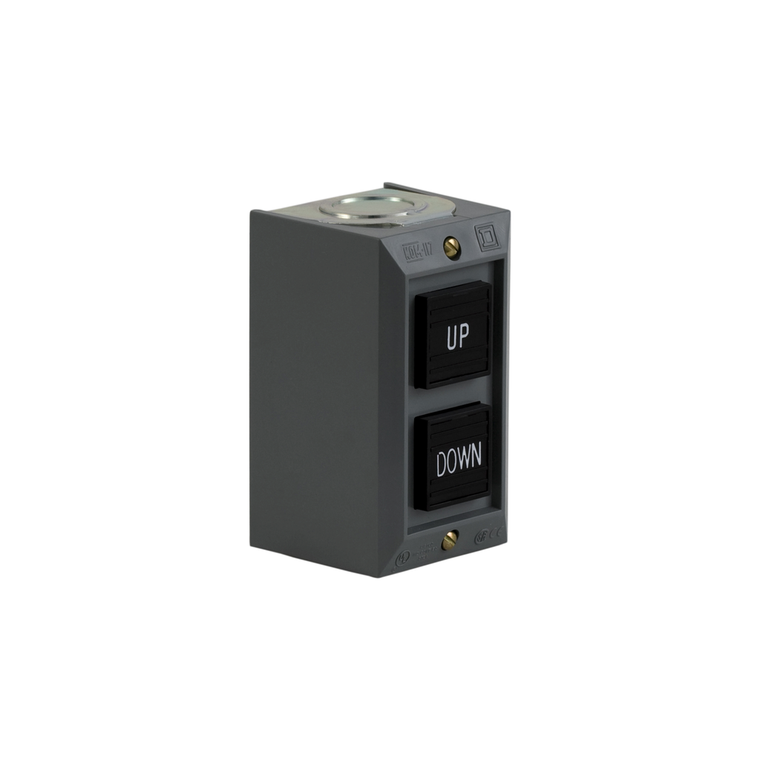

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a UP push button with a normally open contact and a DOWN push button with a normally open contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
- Warranty:
- 18 months
- Product Or Component Type:
- complete control station
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nema Degree Of Protection:
- NEMA 1
- Environmental Disclosure:
- ENVPEP1304002
- Device Short Name:
- 9001BG
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc:
- Yes
- Type Of Installation:
- indoor
- Environmental Characteristic:
- standard environment
- Connections - Terminals:
- screw clamp terminal
- Control Station Composition:
- 2 push-buttons UP-DOWN
- Contacts Type And Composition:
- 2 NO
- Device Mounting:
- surface
- Circularity Profile:
- ENVEOLI1304002EN
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Product Certifications:
- CE || CSA LR25490 class 3211 03 || UL listed file E42259 CCN NKCR
- Toxic Heavy Metal Free:
- Yes
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- Harmony 9001B
- [Ie] Rated Operational Current:
- 5 A 600 V
- Datasheet:
- View
