Schneider Electric

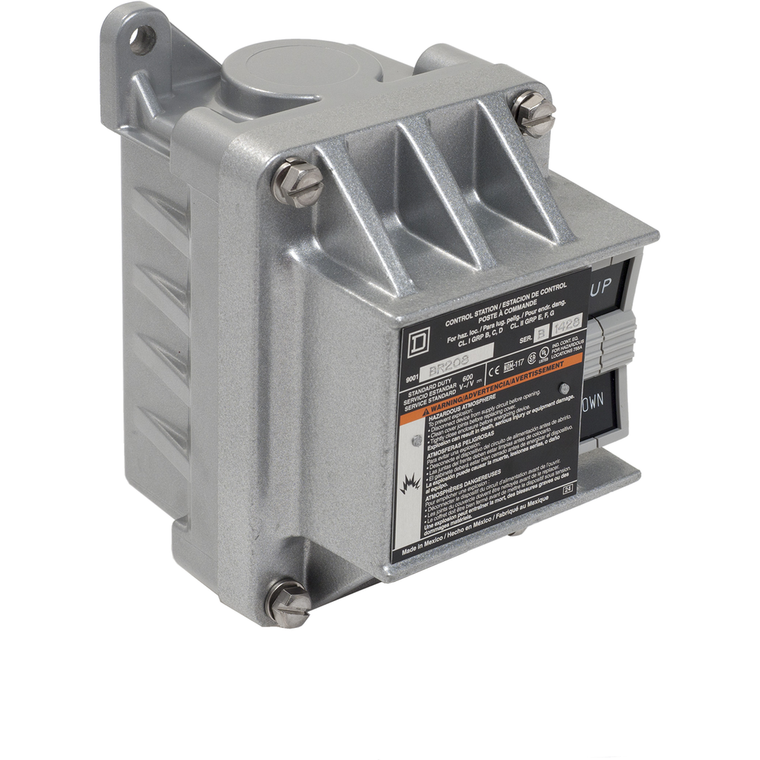

Schneider Electric 9001BR208 Control Station 600Vac 5A T-B

(No reviews yet) Write a Review
SKU:
9001BR208
UPC:
785901856542
Condition:
New
Control Station Composition:
1 push-button, black, white FOR || 1 push-button, black, white REV
Type Of Operator:
momentary
China Rohs Regulation:
X
Colour Of Base Of Enclosure:
grey
Circularity Profile:
ENVEOLI1305038EN
Reach Free Of Svhc:
Yes
Material:
cast zinc
Toxic Heavy Metal Free:
Yes
Rohs Exemption Information:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Or Component Type:
complete control station
Nema Degree Of Protection:
NEMA 7/9
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation:
-25-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-40-70 °C
Device Mounting:
surface
Type Of Installation:
indoor
Mercury Free:
Yes
[Ie] Rated Operational Current:
5 A 600 V, AC
Range Of Product:
Harmony 9001B
Control Station Application:
two functions
Warranty:
18 months
Mechanical Durability:
5000000 cycles
Environmental Disclosure:
ENVPEP1305038EN
Environmental Characteristic:
hazardous location
Contacts Type And Composition:
1 NO + 1 NO
Marking:
CE
Product Certifications:
CSA LR25490 class 3211 03 || UL listed file E42259 CCN NKCR
Device Short Name:
9001BR
Datasheet:
View
$363.00

Description

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has a external toggle to operate the two momentary push buttons inside. It has a UP push button with a normally open contact. It has a DOWN push button with a normally open contact. This NEMA 7/9 hazardous location control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
