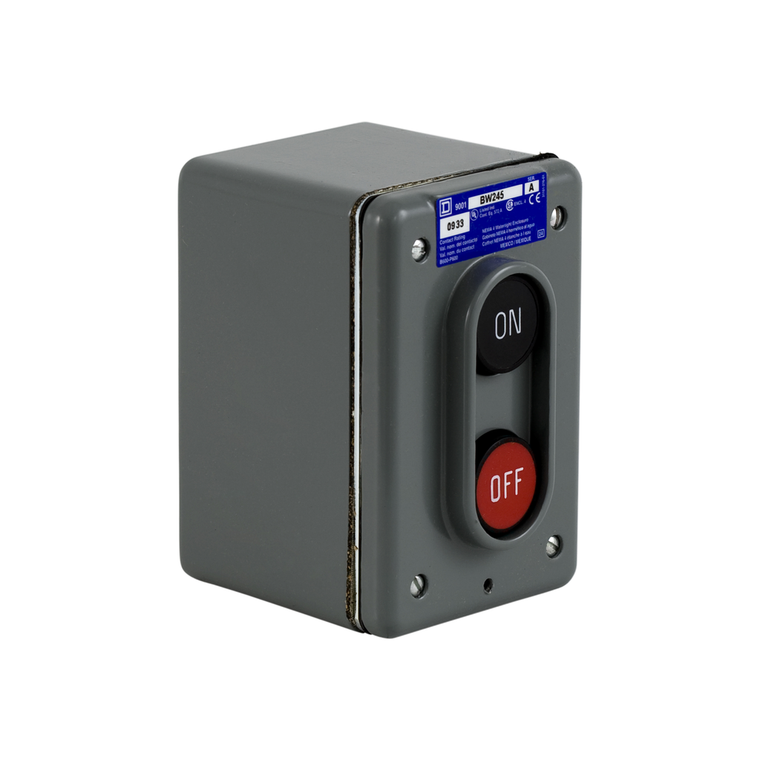

Schneider Electric 9001BW245 Control Station 600Vac 5Amp Type B
SKU:
9001BW245
UPC:
7.85902E+11
MPN:
Condition:
New
Contacts Type And Composition:
1 NO + 1 NC
Environmental Characteristic:
waterproof || dustproof
Type Of Installation:
indoor/outdoor
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Nema Degree Of Protection:
NEMA 1 || NEMA 4
Toxic Heavy Metal Free:
Yes
Range Of Product:
Harmony 9001BW
Sustainable Offer Status:
Green Premium product
Control Station Application:
two functions
Product Certifications:
UL Listed || CSA
Environmental Disclosure:
ENVPEP1304003EN
[Ie] Rated Operational Current:
0.6 A 600 V, AC-1/DC-1 || 0.75 A 480 V, AC || 1.5 A 240 V, AC || 3.75 A 120 V, AC
Cable Entry:
1 entry for 1/2" - 14 NPT
Cad Overall Height:
108 mm
Ambient Air Temperature For Storage:
-40-70 °C
Device Short Name:
9001BW
Mechanical Durability:
5000000 cycles
China Rohs Regulation:
X
Colour Of Base Of Enclosure:
grey
Product Or Component Type:
complete control station
Material:
cast aluminium
Ambient Air Temperature For Operation:
-25-70 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Cad Overall Width:
70 mm
Warranty:
18 months
Type Of Operator:
momentary
Control Station Composition:
1 flush push-button, black, white ON || 1 flush push-button, red, white OFF
Device Mounting:
surface
Reach Free Of Svhc:
Yes
Circularity Profile:
ENVEOLI1304003EN
Rohs Exemption Information:
Yes
Cad Overall Depth:
91 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Standards:
JIS C 4520 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || UL 508 || CSA C22.2 No 14

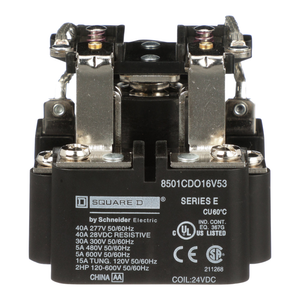

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPDT contact...
