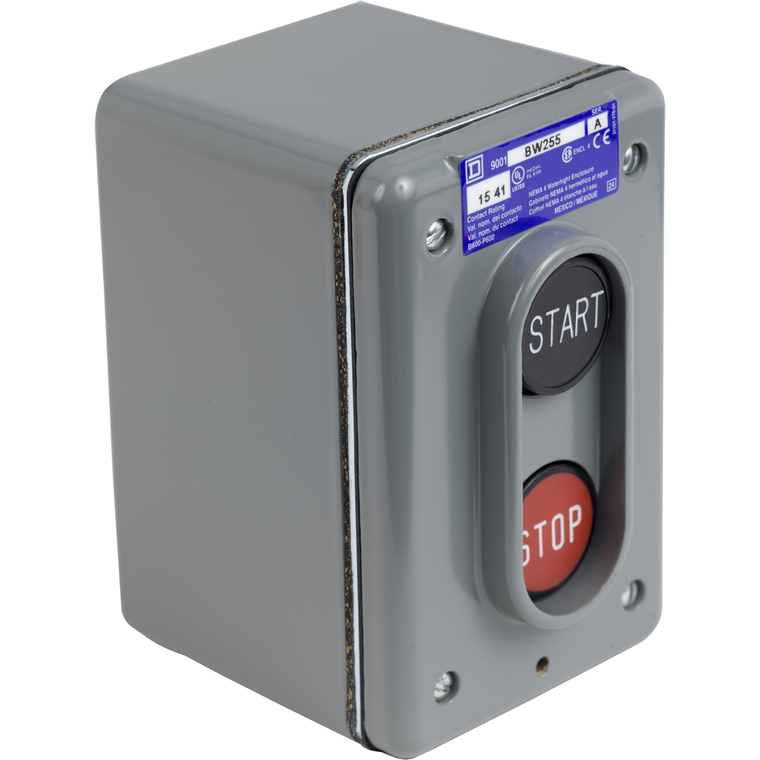

Schneider Electric 9001BW255 Control Station 600Vac 5A T-B
Schneider Electric
$314.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 9001BW255 Control Station 600Vac 5A T-B
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This complete control station with two pushbuttons provides an ergonomic interface for your machines The control station is composed of two push-buttons with 2 NO (Up-Down), and it is connected to control circuits with classic screw-clamp connections It can be used indoor and outdoor It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments
- Reach Free Of Svhc:
- Yes
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Nema Degree Of Protection:
- NEMA 4
- Environmental Characteristic:
- dust and damp proof
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Type Of Installation:
- indoor/outdoor
- Environmental Disclosure:
- ENVPEP1304003EN
- Sustainable Offer Status:
- Green Premium product
- Contact Operation:
- interlocked
- Control Station Composition:
- 2 push-buttons START-STOP
- [Ie] Rated Operational Current:
- 5 A 600 V
- Connections - Terminals:
- screw clamp terminal
- Rohs Exemption Information:
- Yes
- Device Short Name:
- 9001BW
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Or Component Type:
- complete control station
- Contacts Type And Composition:
- 2 NO
- Range Of Product:
- Harmony 9001B
- Product Certifications:
- CE || UL listed file E42259 CCN NKCR || CSA LR25490 class 3211 03
- Device Mounting:
- surface
- Toxic Heavy Metal Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Circularity Profile:
- ENVEOLI1304003EN
- Datasheet:
- View
